Moving Chopper to Windrow Position

CAUTION: Shut off engine, set park brake and remove key.

Remove quick-lock pin (A) and pull arm (B) away and up to release chopper belt tension.

Install quick-lock pin to hold arm in the loose belt position (C).

A-Quick-Lock Pin
B-Arm
C-Loose Belt Position

OUO6075,00016FC -19-21MAY01-1/3

Switch (A), located on the left-hand side sheet above the rear axle, raises and lowers the chopper. Push switch up to raise the chopper.

Raise the chopper assembly until lock-out pins snap into place.

A-Switch

OUO6075,00016FC -19-21MAY01-2/3

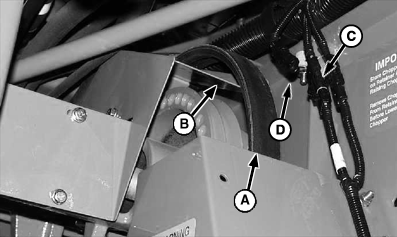

Place drive belt (A) on top of guard (B) so belt does not turn while chopper is in the windrow position.

Disconnect low shaft speed connector (C) and connect to ground (D).

A-Drive Belt
B-Guard
C-Low Shaft Speed Connector
D-Ground

OUO6075,00016FC -19-21MAY01-3/3
