Lowering Chopper

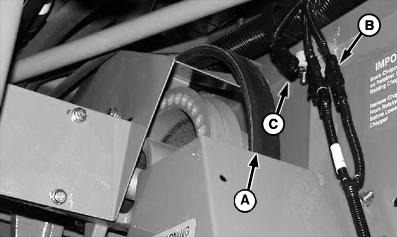

1. Remove drive belt (A) from storage position.

2. Disconnect low shaft speed connector (B) from ground (C) and connect to wiring harness connector.

A-Drive Belt
B-Low Shaft Speed Connector
C-Ground

OUO6075,00016FD -19-21MAY01-1/4

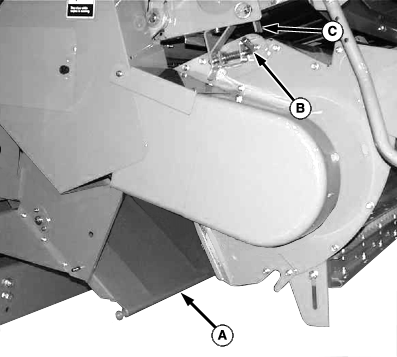

3. Place lower deflector door (A) in the middle position.

4. Release lock-out pins (B) on both sides. Pull pins rearward and rotate up until handle rest on lockout bracket (C).

A-Lower Deflector Door
B-Lock-Out Pins
C-Lockout Bracket

OUO6075,00016FD -19-21MAY01-2/4

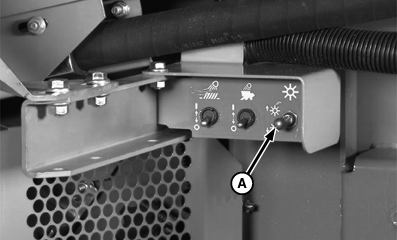

5. Push switch (A) down to lower chopper.

A-Switch

OUO6075,00016FD -19-21MAY01-3/4

6. Place drive belt on desired drive speed sheaves.

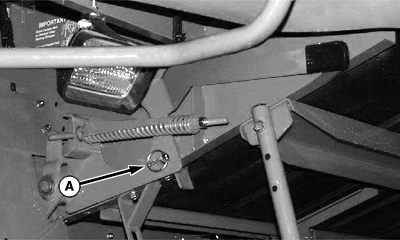

7. Remove quick-lock pin (A).

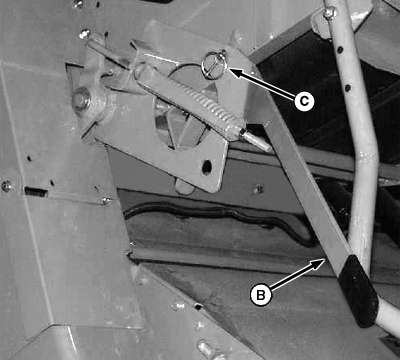

8. Pull arm (B) out and down to put tension to drive belt. Secure arm in hole (C) with quick-lock pin.

A-Quick-Lock Pin
B-Arm
C-Hole

OUO6075,00016FD -19-21MAY01-4/4
