Folding Grain Tank Loading Auger

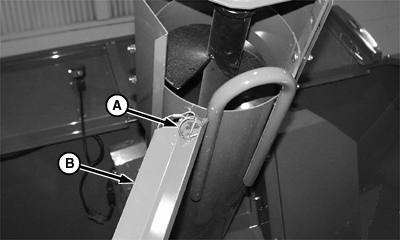

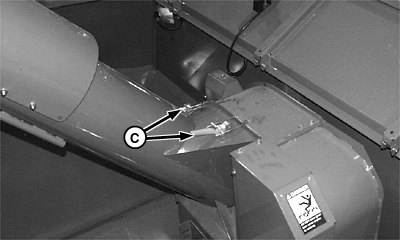

Placing the loading auger in the down position, reduces the height of the combine by .5 m (1-1/2 ft) when the grain tank extensions are also lowered. To lower the auger, remove quick lock pin (A) and grain sample trough (B). Hold the top of the auger and release clamps (C). Lower the auger assembly until it rests on the cross auger cover.
|
|
CAUTION:
The approximate weight of the grain tank loading auger is 23 kg (51 lb).
OUO6075,0001704 -19-21MAY01-1/1 |
