Replacing Right-Hand Front Countershaft Belt

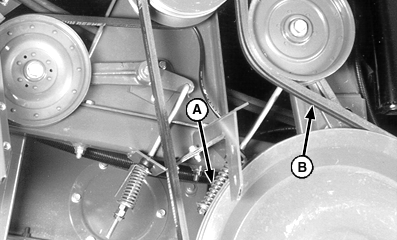

Loosen idler (A) and remove belt (B).

Install new belt.

Adjust belt idler tension spring to the gauge.


A-Idler
B-Right-Hand Front Belt

H62320

OUO6075,000170B -19-21MAY01-1/1
