Replacing Right-Hand Rear Countershaft Belt

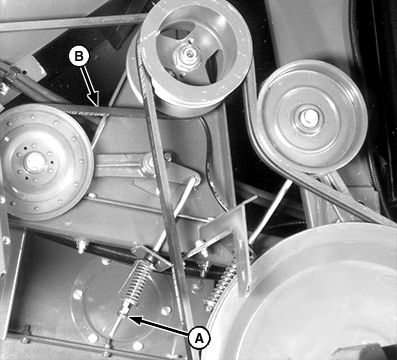

Remove the right-hand front countershaft belt. Loosen idler (A) and remove rear jackshaft belt (B).

Install new belt.

Adjust belt idler tension spring to the gauge.

Install front countershaft belt and adjust idler tension.

A-Idler
B-Rear Jackshaft Belt

OUO6075,000170C -19-21MAY01-1/1
