Relays

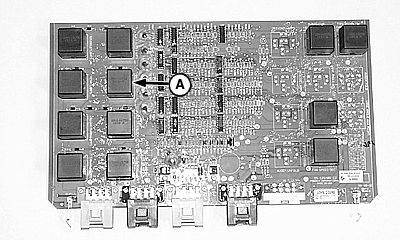

Relays (A) carry large electrical loads and are controlled by switches.

Relays in the central electronics box are on the main power distribution board. #1, #2 and optional power distribution board #3. Relays can be replaced.

IMPORTANT: Relays can be pulled out. They are made with a tight fit for good contact. To prevent damage, pull straight out. Do not pry with a screwdriver, etc.

Each relay is marked by function. All relays are interchangeable.

A-Relay
