Grain Tank Unloading Auger Covers

CAUTION: Shut off engine, set park brake and remove key.

IMPORTANT: If these covers are raised too far in edible beans, the auger drive shear bolt may break repeatedly, or damage could occur to the augers or grain tank.

Normal Position:

Adjust these covers down to slow unloading rate. Also adjust them down in rice or edible beans.

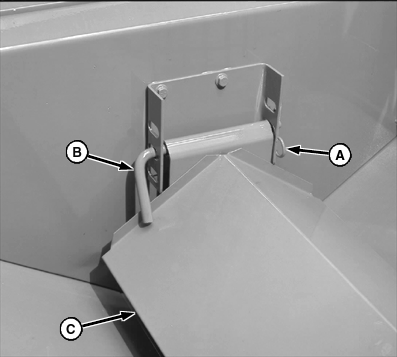

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and re-install pins and lock pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

Rice Position Only:

NOTE: Auger covers come preset for rice position from factory.

Left-hand side of auger covers should be set to the middle position.

Right-hand side of auger covers should be set to the lowest position.

A-Locking Pins
B-Pins
C-Auger Cover
