Changing Feed Accelerator Speed

NOTE: When changing separator speeds make sure to cycle power on and off. The combine will now recognize the new speed range.

To change the feed accelerator speed to the high speed position:

  • Remove belt tension by pushing lever (A) up and out from notch in bracket (B).

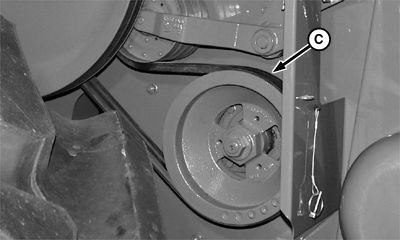

  • Move belt (C) to inside sheave grooves on both sheaves for high speed.
  • Push lever up and into notch in bracket to reset belt tension.


A-Lever
B-Notch in Bracket
C-Belt

H62145
H62146

OUO6075,000194C -19-16JUL01-1/1
