CAUTION: Shut off engine, set park brake and remove key.

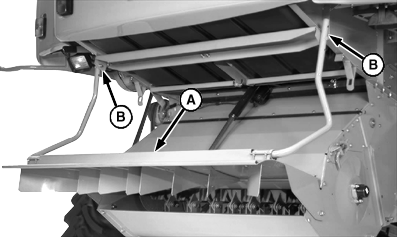

Adjust tailboard (A) up or down to control distance chopped material is spread.
To adjust the tailboard, remove screws (B) and adjust tailboard up or down. Attach tailboard with screws.
A-Tailboard B-Screws
OUO6075,0001952 -19-16JUL01-1/1
CAUTION:
Shut off engine, set park brake and remove key.
