Adjusting Chopper Vanes

causym CAUTION: Shut off engine, set park brake and remove key.

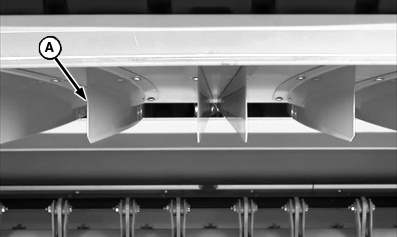

Adjust vanes (A) to spread material over a wide area but doesn't cover uncut crop.

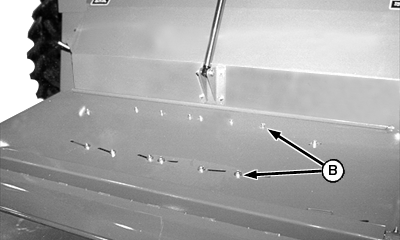

Loosen nuts (B) and adjust outer vane ends in slots. Tighten nuts.


A-Vanes
B-Nuts

H54539
H54629

OUO6075,0001953 -19-16JUL01-1/2

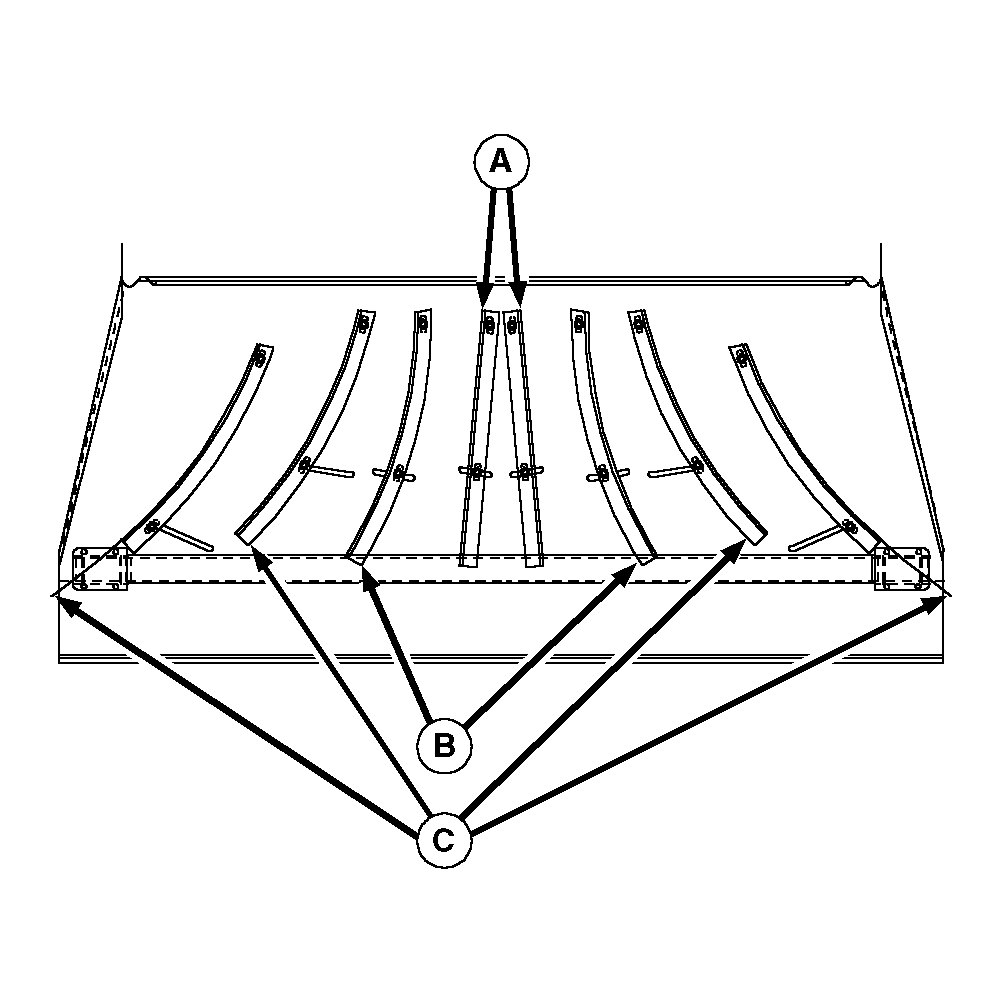

If chopper has a poor spread pattern, adjust inside vanes (A) 1/4 distance in slots, inner (third from outside) vanes (B) 1/2 distance in slot and outside vanes (C) to full out position.


A-Center Vanes
B-Inner (Third From Outside) Vanes
C-Outer Vanes

H62194

OUO6075,0001953 -19-16JUL01-2/2
