Adjusting Chopper Blades

causym CAUTION: Shut off engine, set park brake and remove key.

The straw chopper blades must be free to rotate by their own weight.

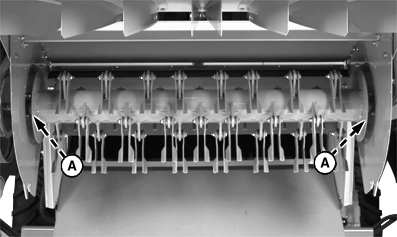

Loosen locking collars (A) (both ends). Position rotor right or left to ensure all rotor blades clear stationary knives. Tighten locking collars in direction of rotor rotation.


A-Locking Collars

H54543

OUO6075,0001954 -19-16JUL01-1/1
