Moving Spreader to Windrow Position

CAUTION: Shut off engine, set park brake and remove key.

The spreader can be rotated upward into the windrow position to allow the material to discharge into a windrow.

OUO6075,0001956 -19-16JUL01-1/4

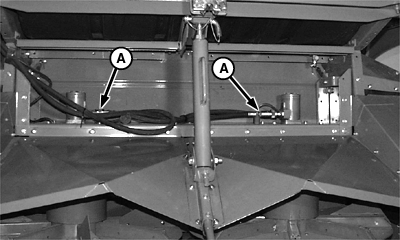

Disconnect hydraulic hoses (A) from spreader and install dust caps.

Connect hoses together.

A-Hydraulic Hoses

OUO6075,0001956 -19-16JUL01-2/4

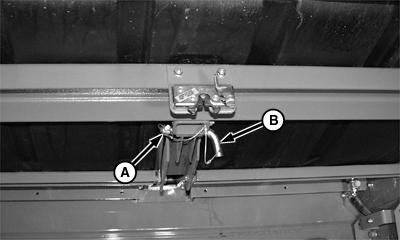

Remove quick-lock pin (A).

Hold onto hold-down assembly handle (B) and remove pin (C). Lower hold-down assembly.

A-Quick-Lock Pin
B-Hold-Down Assembly Handle
C-Pin

OUO6075,0001956 -19-16JUL01-3/4

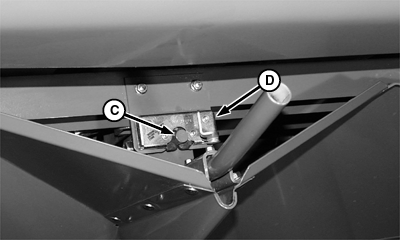

Place pin (B) back into storage position and retain with quick-lock pin (A).

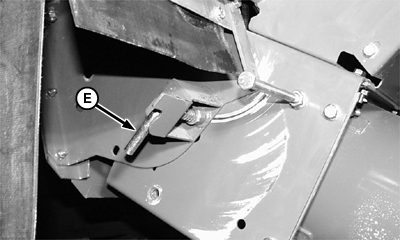

IMPORTANT: Make sure pin (E) is fully engaged in spreader assembly.

Raise spreader until pin (C) is fully engaged in the latch assembly (D).

A-Quick-Lock
B-Pin
C-Pin
D-Latch Assembly
E-Pin
