Lowering Spreader

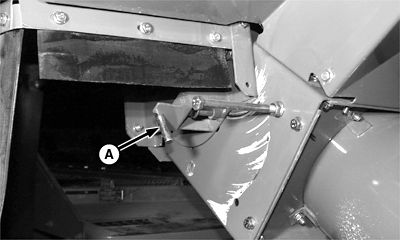

Pull pin (A) out and rotate bracket to unlock spreader from raised position.


A-Pin

H62207

OUO6075,0001958 -19-16JUL01-1/4

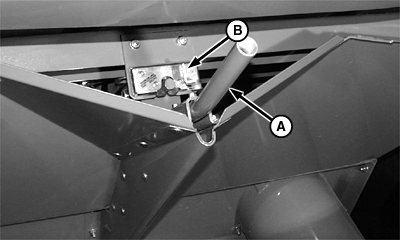

Hold onto spreader handle (A), release latch (B) and lower spreader.


A-Spreader Handle
B-Latch

H62208

OUO6075,0001958 -19-16JUL01-2/4

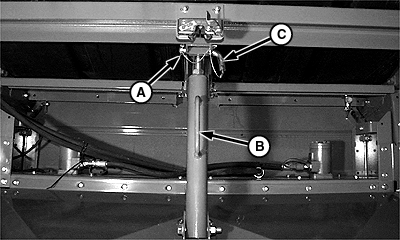

Remove quick-lock pin (A) and pin (C).

Pull hold-down assembly (B) up into guide and retain with pin and quick-lock pin.


A-Quick-Lock Pin
B-Hold-Down Assembly
C-Pin

H62203

OUO6075,0001958 -19-16JUL01-3/4

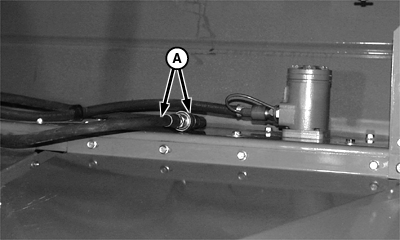

Remove dust caps; disconnect hydraulic hoses (A) and attach to quick couplers.


A-Hydraulic Hoses
