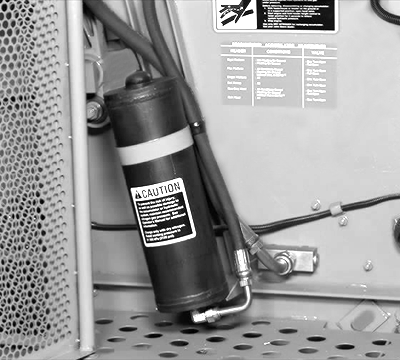

Accumulator Precharge

The accumulator precharge should be matched to the specific header and feeder house lift cylinders on a combine. When changing heads during a harvest season, there is no need to change the pre charge. If operating with different heads, the precharge should be set for the one with the lowest precharge.

NOTE: The factory precharge setting is 1200 psi.

To adjust accumulator precharge, see your John Deere dealer.

H57464

AG,OUO1035,1606 -19-24JAN00-1/1
