Vertical Adjustment of Auger Support Stud

NOTE: Periodically check to be sure that the auger fully slides into the stud when the auger is fully retracted. Readjust as needed.

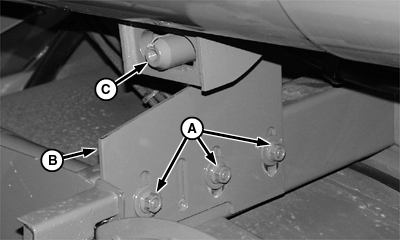

Loosen nuts (A) to adjust position of stud plate (B). Stud (C) should be vertically centered in hole in auger. Tighten nuts.

A-Hardware
B-Plate
C-Stud

OUO6075,0001539 -19-22FEB01-1/1
