Replacing Right-Hand Rear Countershaft Belt

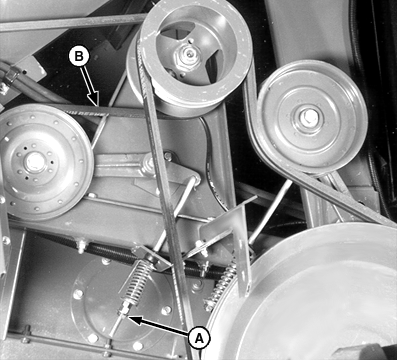

Remove the right-hand front countershaft belt. Loosen tension on idler nut (A) and remove rear jackshaft belt (B).

Install new belt.

Adjust belt idler tension spring to end of gauge.

Install front countershaft belt and adjust idler tension.

A-Idler Nut
B-Rear Jackshaft Belt

OUO6075,000170C -19-21MAY01-1/1
