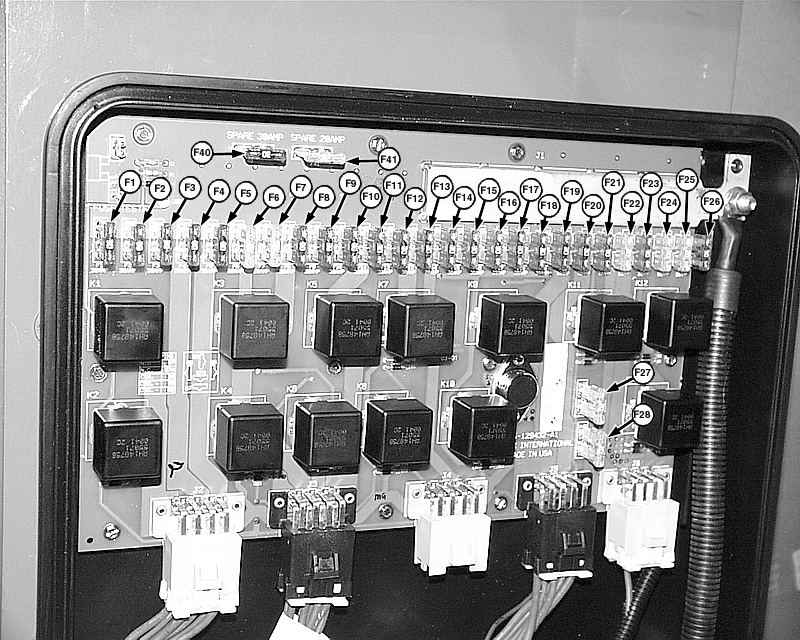

F1-Left Control Unit Power
F2-Control Unit Power
F3-Light Power 3
F4-Light Power 4
F5-Light Power 2
F6-Service Power
F7-Press. Fan Power
F8-Motor Power
F9-Light Power 5
|
F10-Recirculation Fan Power
F11-Fan Speed Adjust Power
F12-Conv. Outlet Switched Power
F13-Unused
F14-Unused
F15-Unused
F16-Service Lamp Power
F17-Electronic Power
|
F18-Light Power 1
F19-Conv. Outlet Unswitched Power
F20-Unswitched Electronic Power
F21-Ignition Switch - Batt. Power
F22-Service Light Power
F23-Unused
|
F24-Fuel Pump Power
F25-Engine Control Unit Power
F26-Unused
F27-Unused
F28-Header Control Unit Power
F40-Spare 30 Amp
F41-Spare 20 Amp
|
