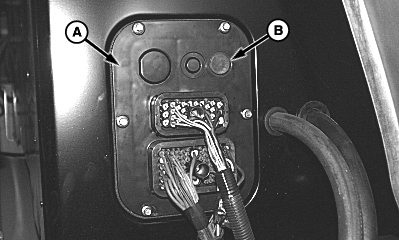

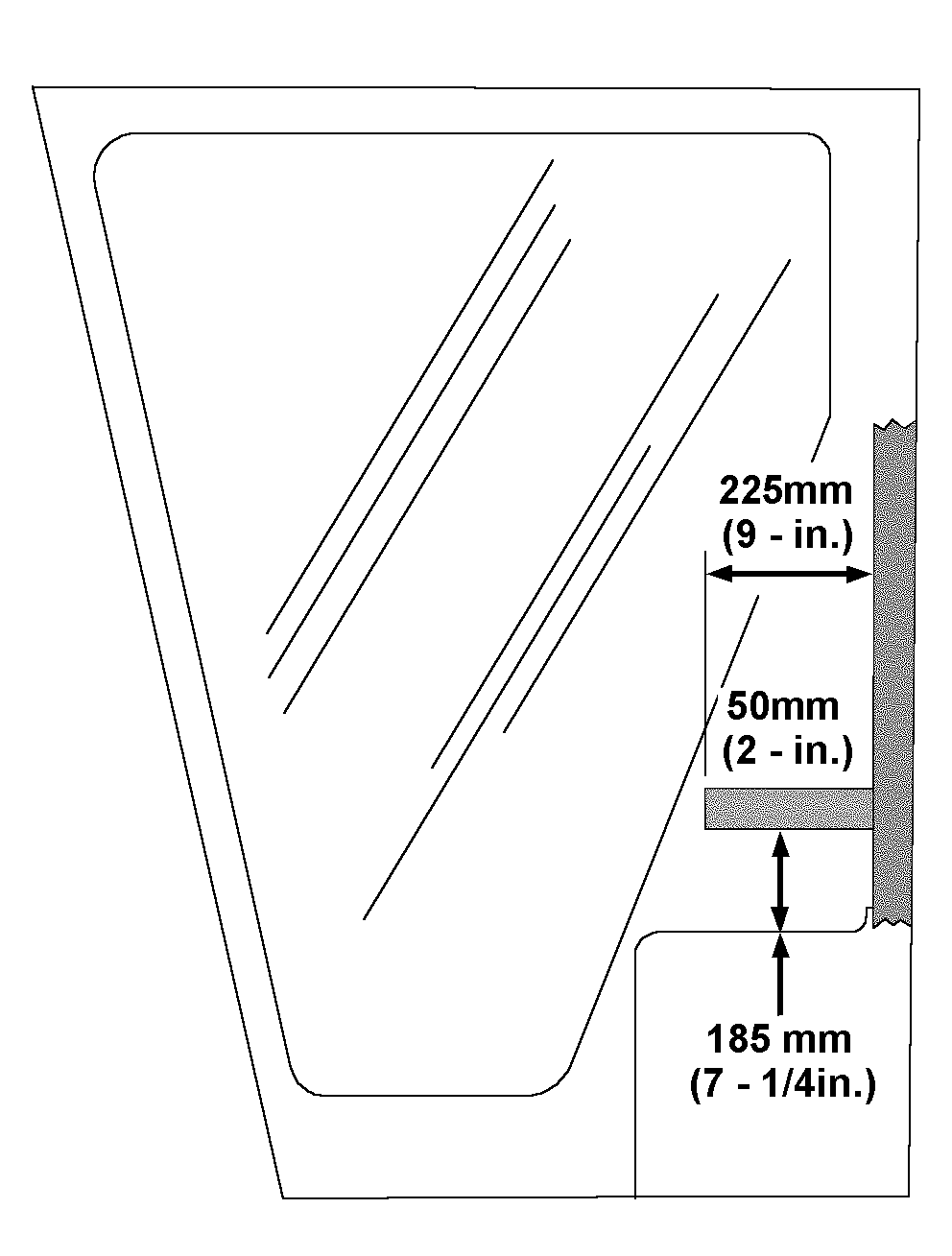

Communications/CB Radio MountingA mounting plate is provided to install a radio. Use bracket from radio template, then drill holes as required through foam and plate (shaded area) on rear right-hand side of cab. This plate cannot be seen (behind foam). Use self tapping screws to mount radio. Remove right-hand cab connector mounting plate (A). Route antenna lead through rubber grommet (B) on wiring harness plate. Cut grommet for antenna cable. Do not leave grommet out or mice can enter cab area.
|
|
