Brake Fluid Reservoir

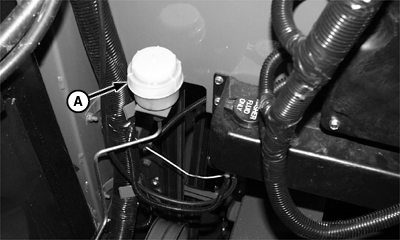

Check fluid through cap (A). Be careful to keep dirt out of system.

Fluid should be 6 mm (1/4 in.) from top.

Use SAE J1703d or DOT-3 hydraulic brake fluid.

Keep fluid off of painted surfaces.

A-Cap

OUO6075,0001A32 -19-20AUG01-1/1
