Replacing Discharge Beater Belt

causym CAUTION: Shut off engine, set parking brake and remove key.

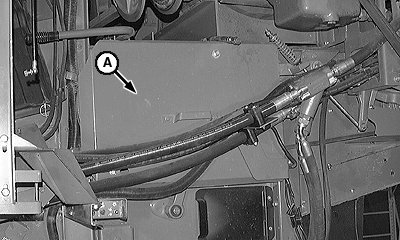

1. Remove shield (A) from left-hand side rear of machine.


A-Shield

H51927

OUO6075,0001B3F -19-07NOV01-1/2

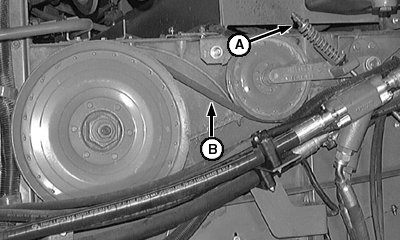

2. Loosen spring tensioner nut (A) and remove belt (B).

3. Install new belt.

4. Adjust belt idler tension spring to end of gauge.


A-Nut
B-Belt

H51928

OUO6075,0001B3F -19-07NOV01-2/2
