Replacing Header Reel/Belt Pickup Pump Belt

CAUTION: Shut off engine, set parking brake and remove key.

NOTE: It is not necessary to disconnect any hydraulic hoses to replace this belt.

Remove shields.

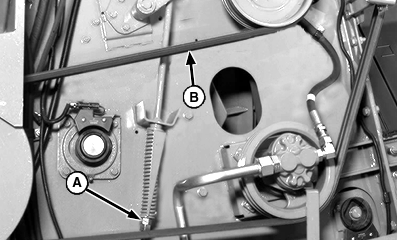

Loosen spring tension idler nut (A).

Remove header drive belt.

Disconnect wire from electric clutch.

Remove belt (B).

Install new belt. Adjust belt idler tension to end of gauge.

Check feeder house variable sheave gap.

A-Nut
B-Belt

OUO6075,0001B42 -19-07NOV01-1/1
