Replacing Right-Hand Front Countershaft Belt

Loosen idler spring (A) and remove belt (B).

Install new belt.

Adjust belt idler tension spring to end of gauge.

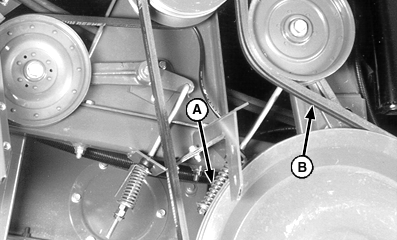

A-Idler Spring
B-Right-Hand Front Belt

H62320

OUO6075,0001B43 -19-07NOV01-1/1
