Replacing Shoe, Fan and Conveyor Auger Belt

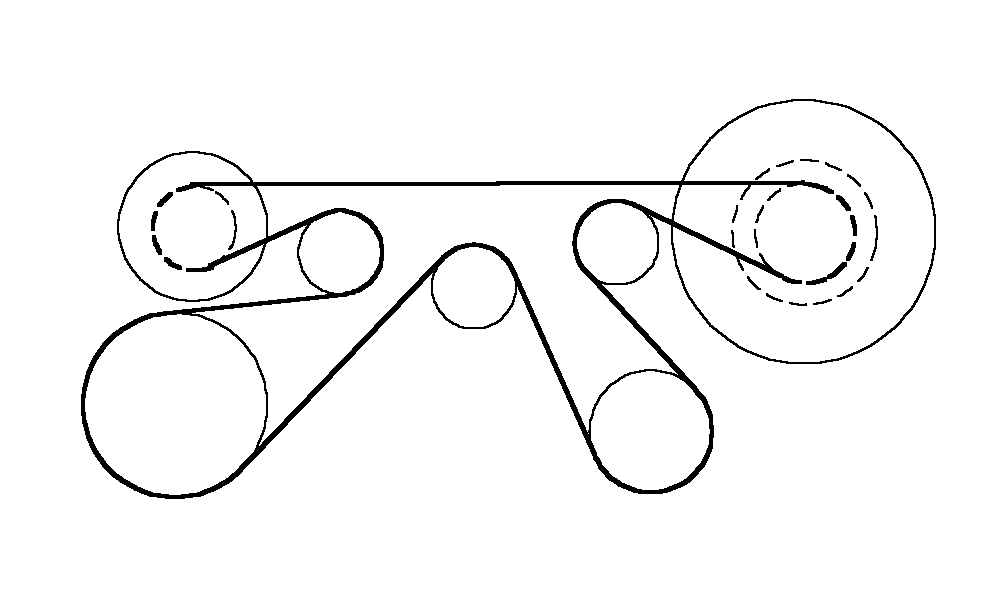

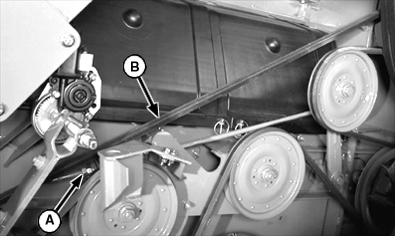

Remove the right-hand front countershaft and cleaning fan variable drive belts. Loosen tension on idler nut (A) and remove the shoe, fan and conveyor auger drive belt (B).

Install new belt.

Adjust belt idler tension spring to end of gauge.

Reinstall front countershaft and fan variable belts and adjust idler tensions.

A-Nut
B-Belt

OUO6075,0001B46 -19-07NOV01-1/1
