OUO6075,0001C67 -19-21FEB02-1/8

1. Unloading Auger Upper Gear Case. Lube one fitting.

2. Unloading Auger Lower Gear Case Bearing. Lube one fitting.

3. Separator Countershaft U-Joint Driveshaft Slip Spline. Rotate to access fitting.

4. Chopper and Discharge Beater Countershaft Bearings. Lube two fittings.

5. Chopper/Unloading Driveshaft Bearing. Rotate sheave to access fitting in bottom of sheave groove.

IMPORTANT: Remove pipe plug and install grease fitting. Pump 40 to 45 shots of

6. Single Tine Separator Variable Driver Sheave. Close sheaves (high speed) before greasing at pipe plug in outer sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if drive is operated at high speed all the time.

7. Feed Accelerator Bearing. Lube one fitting.

8. Header/Reel Drive Pump Drive Sheave Bearing. Lube one fitting.

9. Chopper Rotor Bearings. Lube one fitting (both sides).

OUO6075,0001C67 -19-21FEB02-2/8

OUO6075,0001C67 -19-21FEB02-3/8

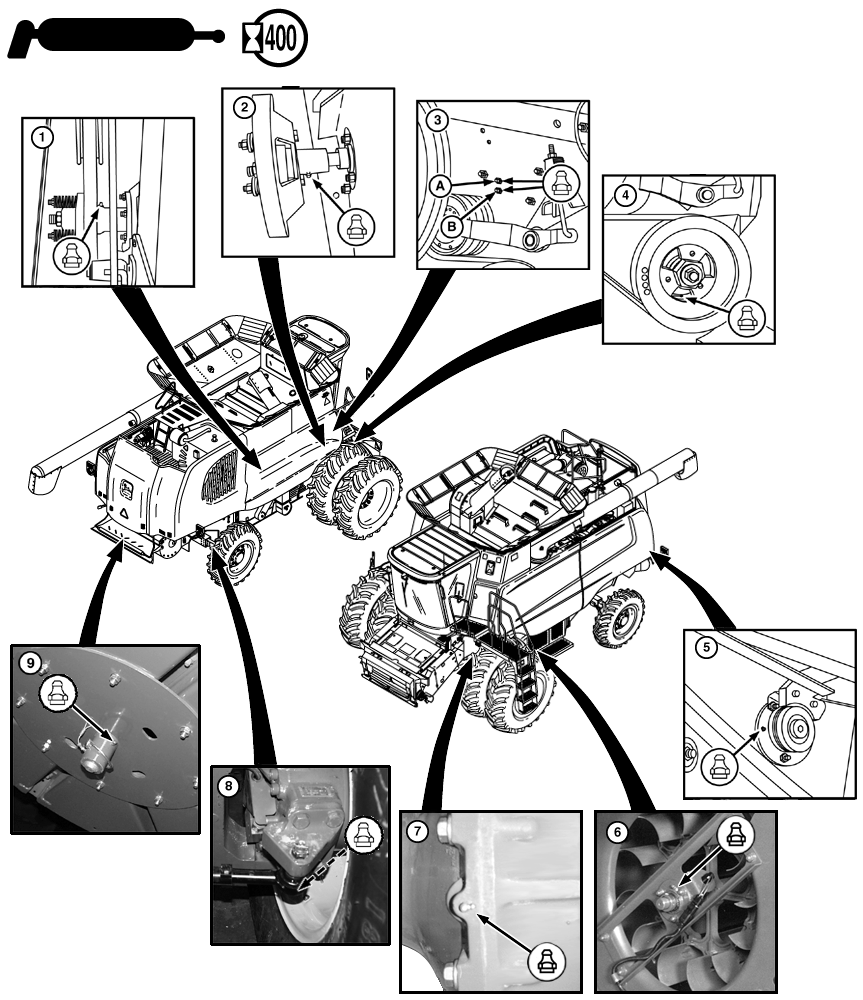

1. Tailings Drive Slip Clutch. Rotate sheave assembly for fitting access. Do not over grease.

2. Conveyor Auger Drive Slip Clutch. Rotate sheave assembly for fitting access. DO NOT OVER GREASE.

3. Right-Hand Side Lube Bank. Lubricate primary countershaft bearing (A) and STS separator bearing (B).

4. Feed Accelerator Bearing. Rotate sheaves for access to fitting.

5. Discharge Beater Bearing (both sides). Lube one fitting.

6. Cleaning Fan Shaft Bearings (both sides). Lube one fitting.

7. Final Drive Outer Bearing. Lube one fitting (both sides). When operating in mud or water lube at 10 hours.

8. Rear Axle (both sides). Lube one fitting on power steering rod end ball joint.

9. Spreader Disk (both sides). Lubricate one fitting to prevent hubs from corroding to shafts.

OUO6075,0001C67 -19-21FEB02-4/8

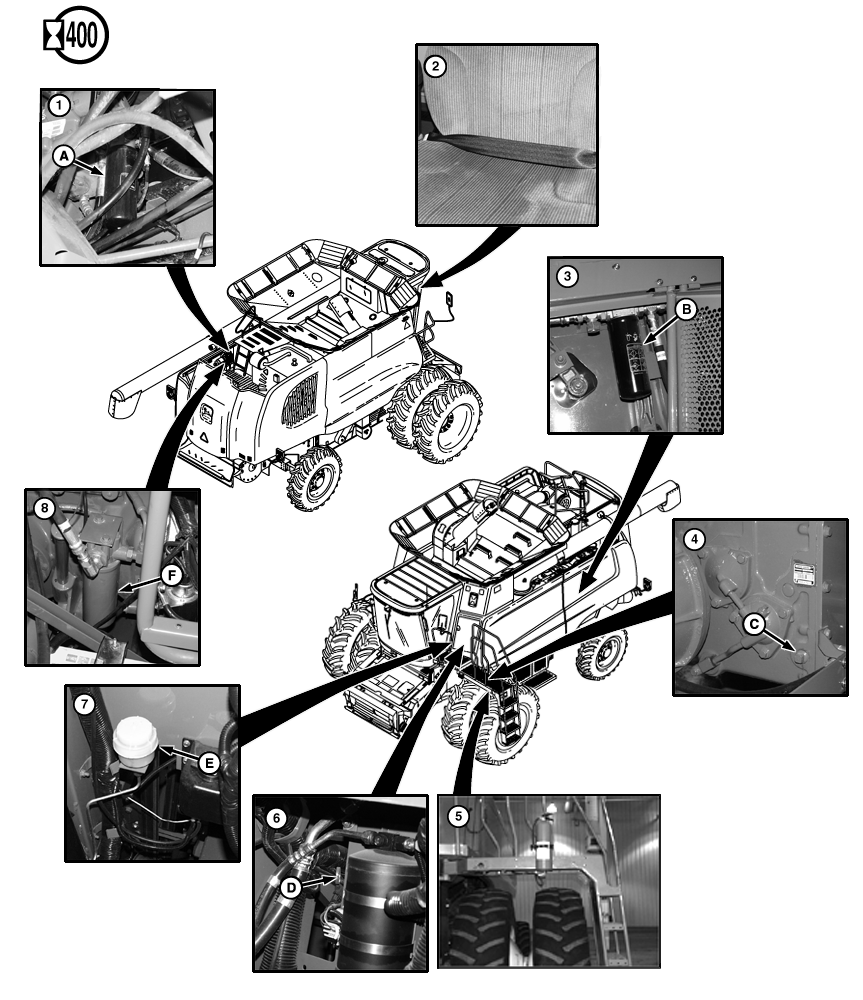

A-Hydraulic/Hydrostatic Filter
B-Hydro Charge Filter

C-Plug
D-Dipstick

E-Brake Fluid Reservoir Cap

F-Engine PTO Gearcase Filter

OUO6075,0001C67 -19-21FEB02-5/8

1. Main Hydraulic Filter (A). Remove filter, coat seal with oil and install new filter. Hand tighten then tighten 1/2 turn more.

IMPORTANT: Inspect seat belt and mounting hardware on your machine at least once a year. If seat belt system, including the mounting hardware, buckle, belt or retractor, shows any sign of damage or unusual wear, discoloration, or abrasion the entire seat belt should be replaced immediately. For your safety, replace the seat belt system with replacement parts approved for your machine. See your John Deere dealer.

2. Inspect seat belt.

NOTE: It is not necessary to drain system when installing filters.

3. Hydro Charge Filter (B). Remove filter, coat seal with oil and install new filter. Hand tighten then tighten 1/2 turn more.

4. Transmission. Remove plug (C) and check level. Add oil as needed until within 12 mm (1/2 in.) of bottom of hole.

5. Inspect fire extinguishers (front and rear) by following the maintenance instructions on the fire extinguisher label. Recharge or replace as necessary.

6. Primary Countershaft Gearcase Oil Level. Check oil level at dipstick (D). Add oil as needed.

7. Brake Fluid Reservoir. Look through cap (E). Add brake fluid to within 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

8. Engine PTO Gearcase Filter (F). Remove filter, coat seal with oil and install new filter. Hand tighten then tighten 1/2 turn more.

OUO6075,0001C67 -19-21FEB02-6/8

OUO6075,0001C67 -19-21FEB02-7/8

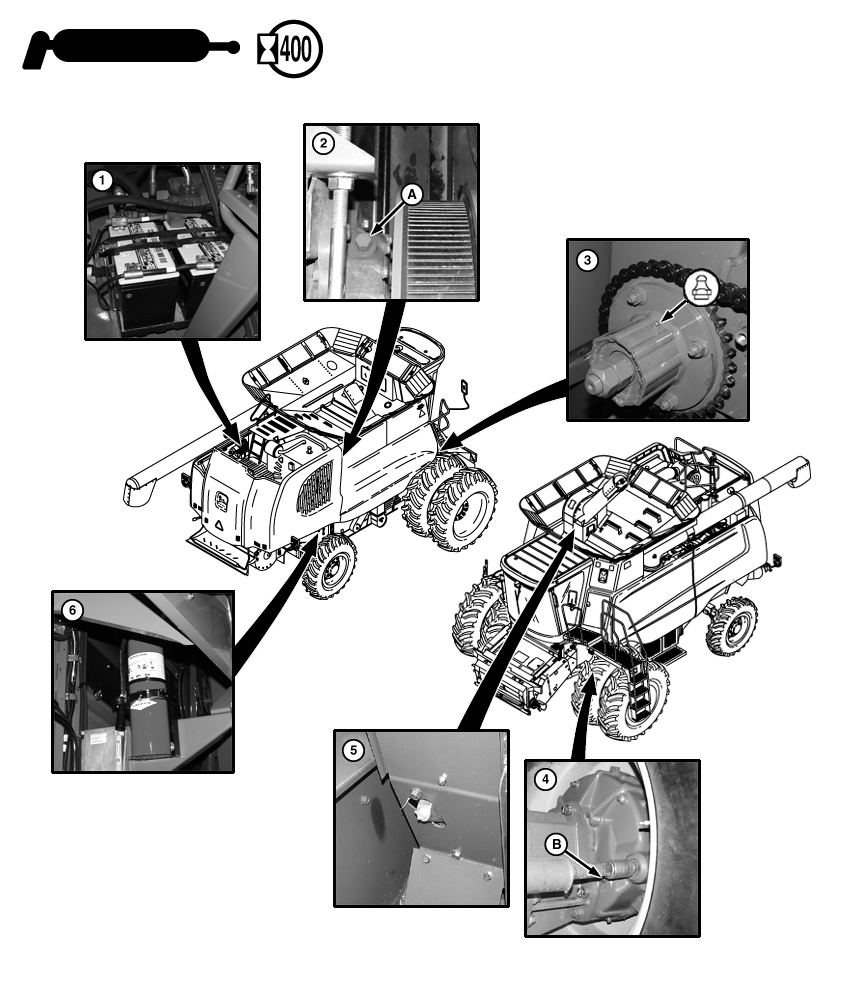

1. Batteries. Clean top of batteries and check level in each cell. Fill to bottom of filler neck with distilled water if needed. Clean battery posts and cables. Tighten connectors, if needed.

2. STS Two Speed Drive. Remove dipstick (A) and check oil level. Oil level should be in between grooves on dipstick. Add oil as needed.

3. Lube upper feeder house slip clutch, until grease is forced out past seal.

4. Final Drives. Remove plug (B) and check level (both sides). Oil should be within 12 mm (1/2 in) of bottom of hole. Add oil as needed.

NOTE: Loading auger gearcase does not need to be drained.

5. Loading Auger Gearcase. Check plug and add oil as needed.

6. Inspect fire extinguisher by following the maintenance instructions on the fire extinguisher label. Recharge or replace as necessary.

OUO6075,0001C67 -19-21FEB02-8/8
