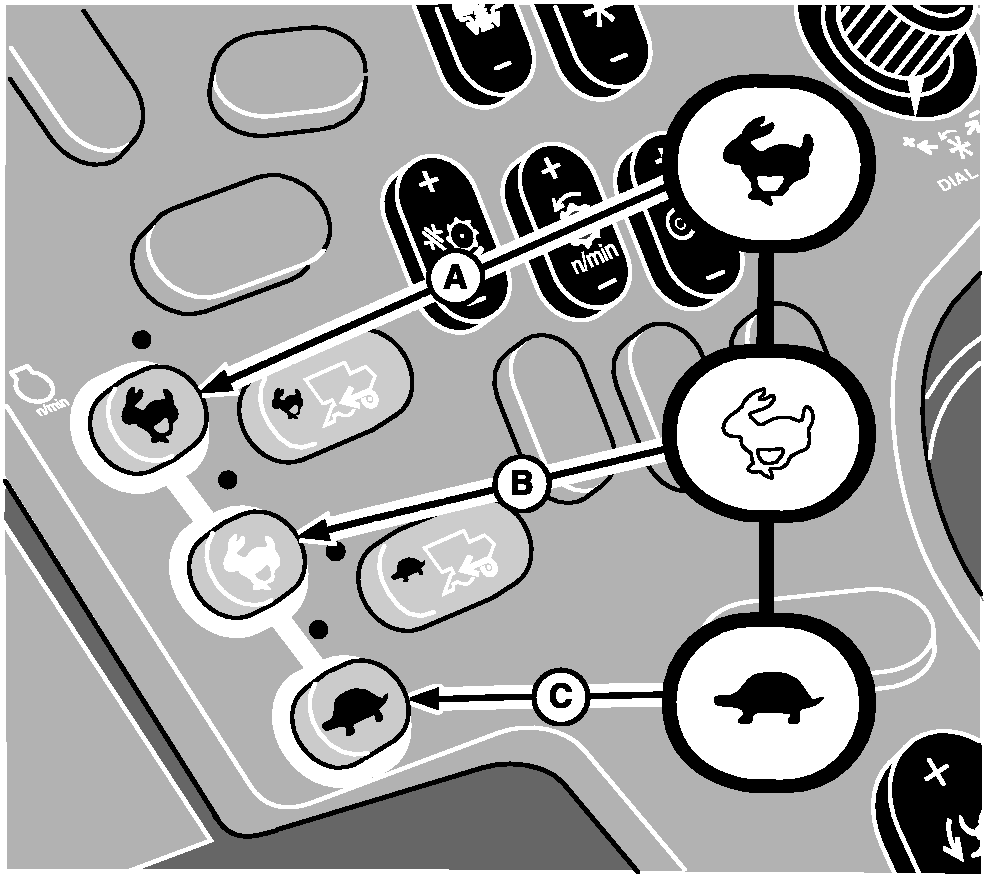

Engine Speed Switches (Orange)

For fast idle (2340 rpm) press switch (A)

For mid speed (1680 rpm) press switch (B).

For slow idle (1200) press switch (C).

A-Fast Idle Switch
B-Mid Speed Switch
C-Low Idle Switch

OUO6075,0001CA1 -19-04MAR02-1/1
