Road Transport Disconnect Switch (Black)

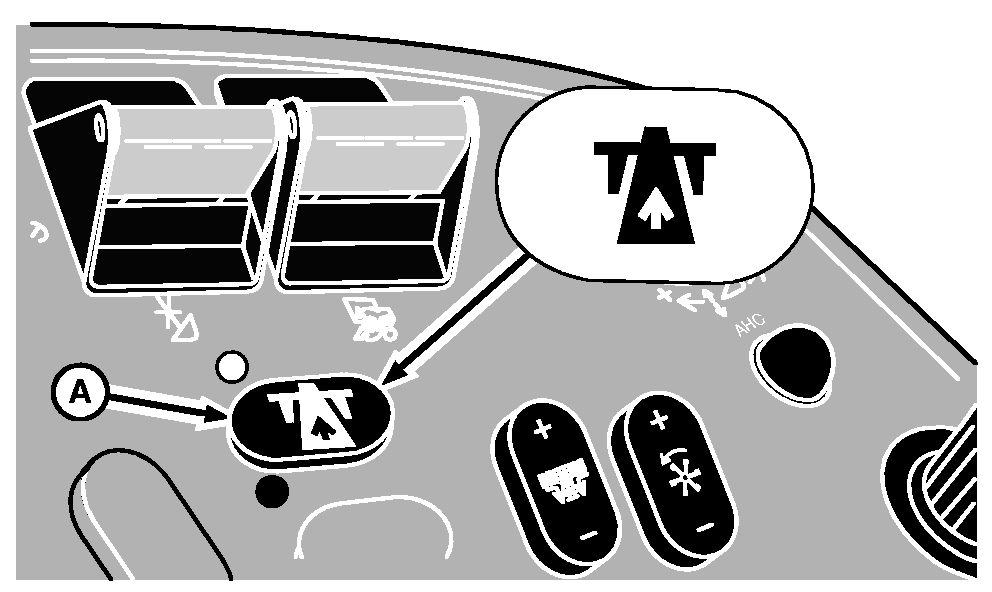

The road transport disconnect switch (A) must be in the road position when transporting the combine on the road.

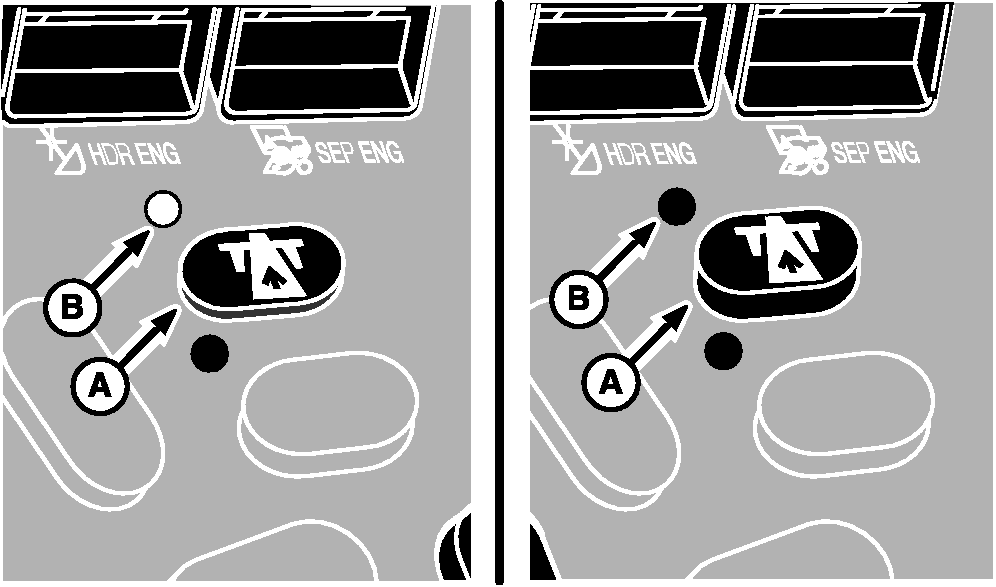

When you press disconnect switch, indicator light (B) will come on indicating the switch is in road position. Pressing disconnect switch will prevent the following functions.

• Header Height Resume
• Header Height Sensing
• CONTOUR MASTER ™
• Reel raise/lower and Reel fore/aft
• Unloading auger
• Auger swing
• Separator engage
• Header engage
• Header raise and lower

To re-engage functions for field operation, press the road transport disconnect switch, then the desired function switch.

A-Road Transport Disconnect Switch
B-Indicator Light
