IMPORTANT: Service times are for average conditions. Service more often if combine is used in extreme conditions.

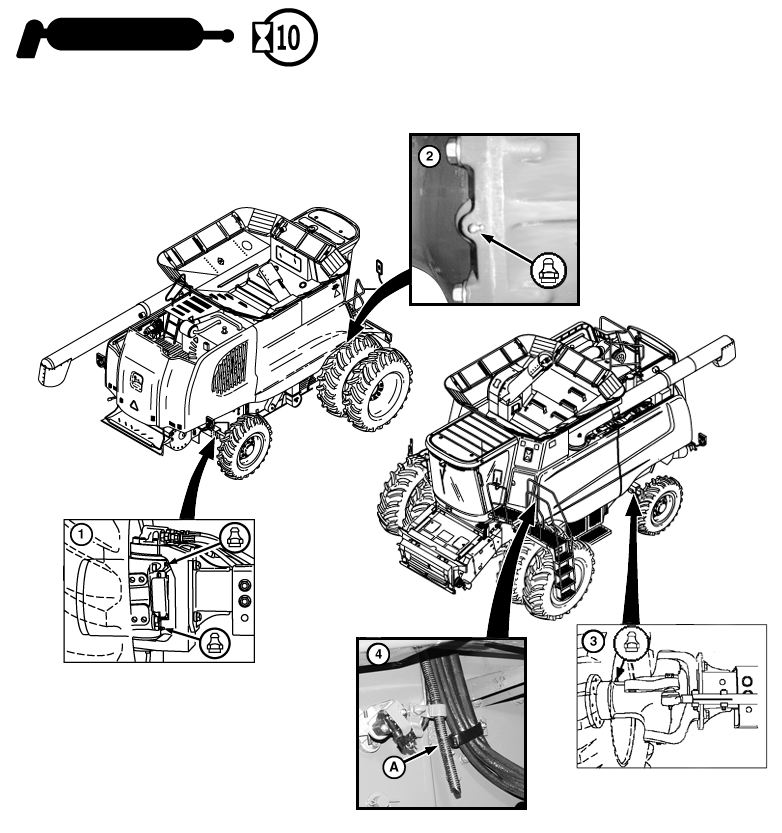

1. Motor Pivots Two Speed Four Wheel Drive (both sides).

Lube two fittings.

OUO6075,0001EA7 -19-02APR02-1/3

2. Final Drive Outer Bearings. When operating in mud and water, grease at 10 hours. In normal conditions grease at 100 hours.

NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots at 10 hours. In normal conditions grease at 50 hours.

Grease rear hubs until grease purges from inner seal.

3. Heavy Duty Axle Spindle Bearings (both sides). When operating in mud and water, grease at 10 hours. In normal conditions grease at 50 hours.

4. Air Conditioning Drain Hose. Clean air conditioning drain hose (A).

OUO6075,0001EA7 -19-02APR02-2/3

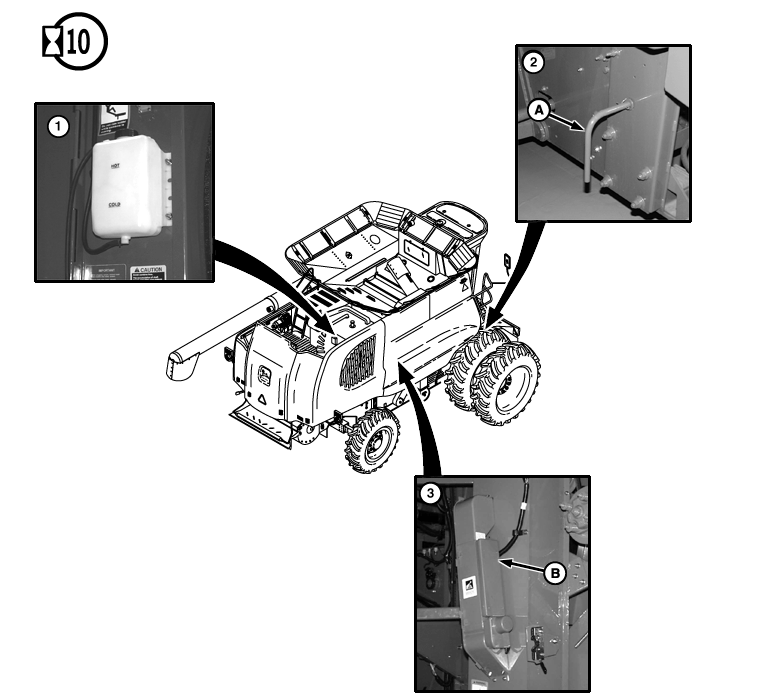

1. Recovery Tank. Check coolant level with engine cold, level must be up to the "COLD" mark.

2. Stone trap. Dump stone trap at lever (A).

3. Moisture Sensor. Clean out moisture sensor (B) when operating in weedy or green crops. In normal conditions cleanout at 50 hours.

OUO6075,0001EA7 -19-02APR02-3/3
