Fuel System

NOTE: Make sure pre-filter bowl is fully seated to prevent air from entering the fuel system.

Remove and clean pre-filter screen (B) if dirty fuel has been used.

Drain water out of water trap (A) and engine filter. (See Service Engine section).

If problem persists change final fuel filter (C). (See Service Engine section).

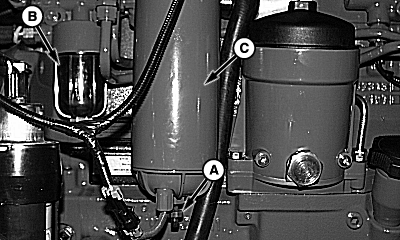

A-Water Trap
B-Filter
C-Final Fuel Filter

OUO6075,0001F79 -19-19APR02-1/1
