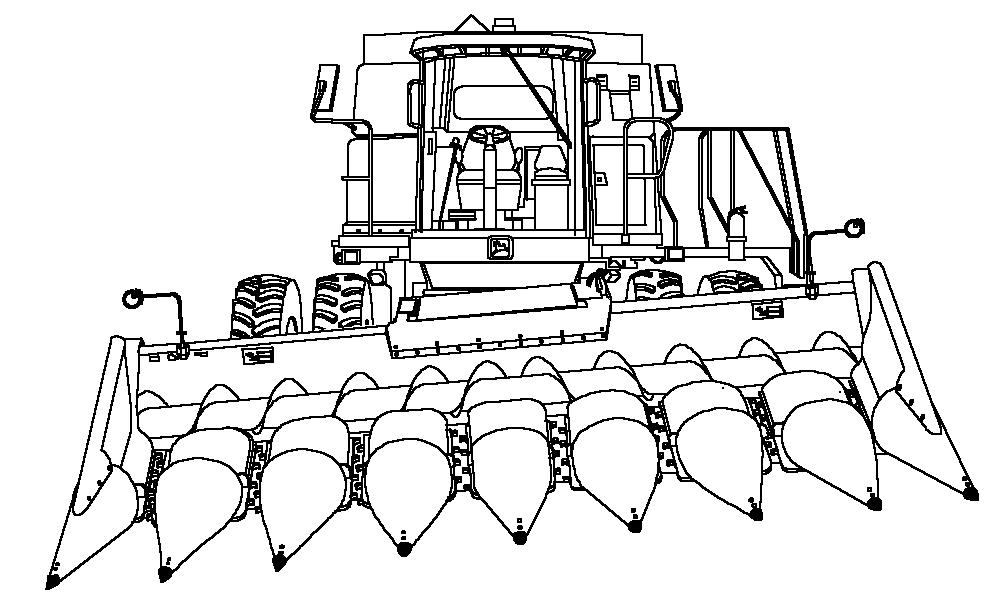

CONTOUR MASTER system maintains the horizontal header position relative to the ground. It uses sensors to determine height at each end of the header. The system tilts the header +/- 4 degrees to equalize the distances to the ground at each end of the header. The system uses a special feeder house that allows the header to tilt left and right.

If the combine is equipped with Header Height Sensing (optional), they work together to maintain the closest position of the cutter bar to the ground.

The CONTOUR MASTER system must be calibrated for each header that is used with the combine (See Calibration Procedures in this manual).

The CONTOUR MASTER system can be activated with any of the three activation buttons located on the multi-function handle.

When Header Height Resume is enabled, all three activation buttons will activate Header Height Resume and CONTOUR MASTER system.

If Header Height Sensing, Header Height Resume and CONTOUR MASTER systems are enabled activation

Activation buttons 2 and 3 will activate Header Height Sensing and CONTOUR MASTER system.

If Header Height Sensing and Header Height Resume are disabled, CONTOUR MASTER system will still operate as long as it is enabled.

If CONTOUR MASTER system is disabled, Header Height Sensing and Header Height Resume will still operate.

The CONTOUR MASTER mode will be active only when:

1. A properly equipped header is connected to the combine.
2. The engine is running.
3. The road transport disconnect switch is in the field position:
4. CONTOUR MASTER mode is enabled.
5. The header engage switch is engaged.

OUO6075,0001FC9 -19-22APR02-1/2

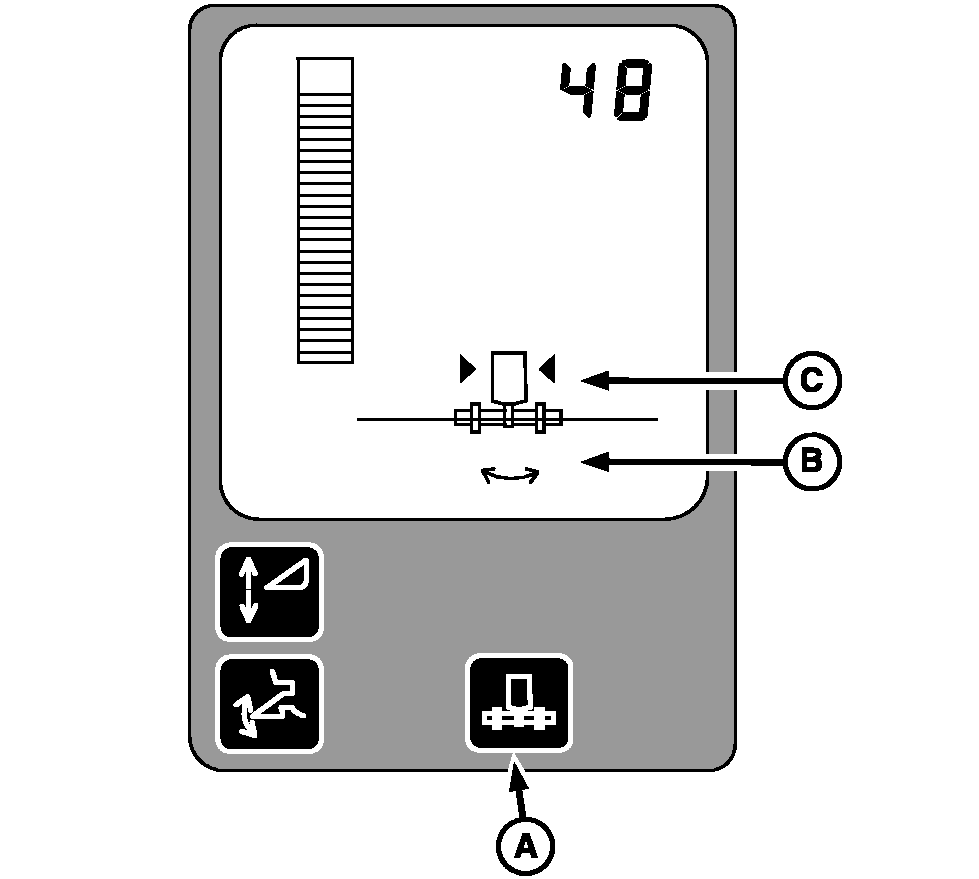

CONTOUR MASTER system is enabled by pressing switch (A) on the cornerpost display unit. Tilt symbol (B) will appear on the display.

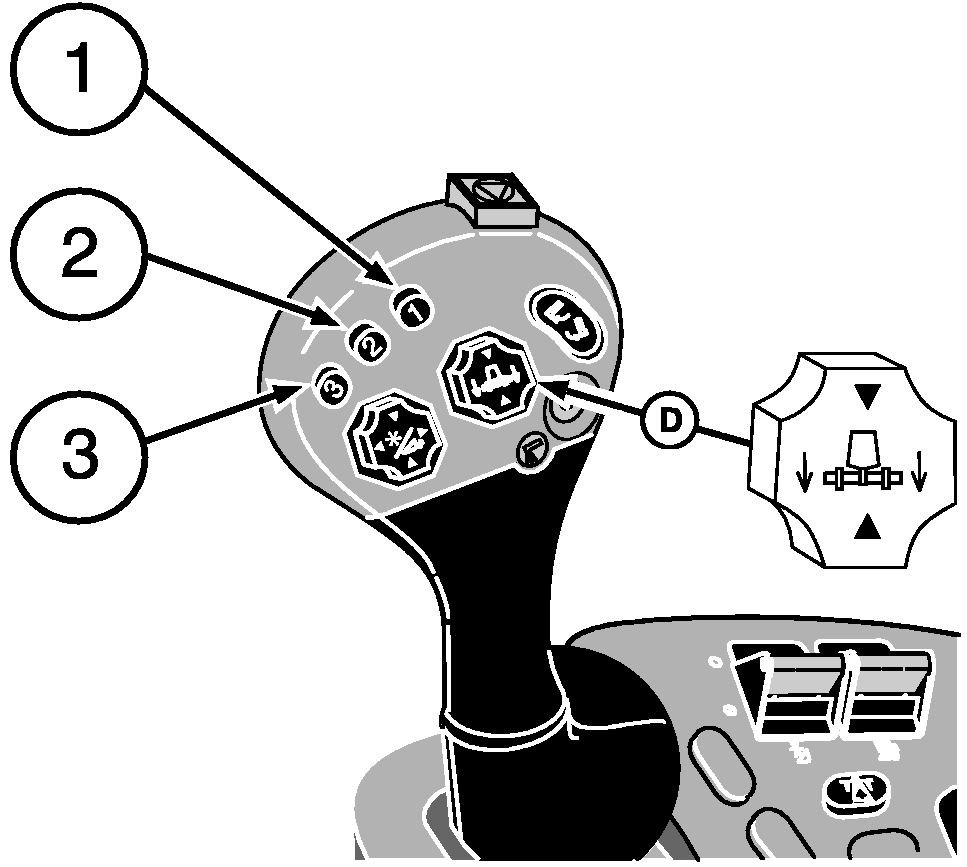

Activate the CONTOUR MASTER system by pressing any of the activation buttons 1, 2 or 3 on the multi-function handle. Arrows (C) on each side of the symbol indicate that the system is active.

NOTE: Pressing the manual tilt switch (D) overrides CONTOUR MASTER system, when the switch is released the system returns to the automatic mode.

Press the right side of the switch to tilt header to the right.

Press the left side of the switch to tilt header to the left.

Pressing any of the activation buttons will reactivate the system.

The CONTOUR MASTER system can be disabled by pressing switch (A).

A-Activation Switch
B-Tilt Symbol
C-System Active Arrows
D-Manual Tilt Switch

OUO6075,0001FC9 -19-22APR02-2/2
