CAUTION: Shut off engine, set park brake and remove key.

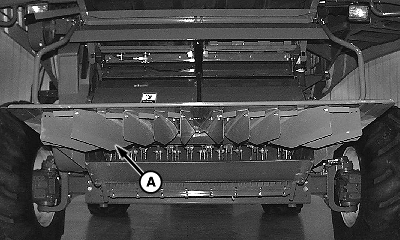

Adjust vanes (A) to control distribution of straw across the cut crop.

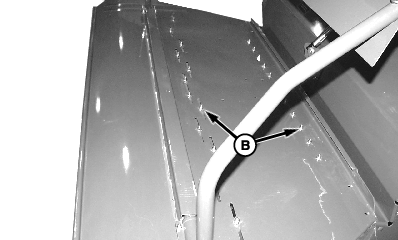

Loosen nuts (B) and adjust outer vane ends in slots. Tighten nuts.
A-Vanes B-Nuts
OUO6075,0002007 -19-24APR02-1/1
CAUTION:
Shut off engine, set park brake and remove key.
