Moving Spreader to Windrow Position

CAUTION: Shut off engine, set park brake and remove key.

The spreader can be rotated upward into the windrow position to allow the material to discharge into a windrow.

OUO6075,0002049 -19-30APR02-1/4

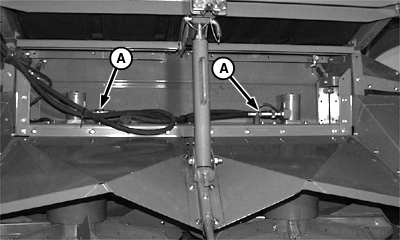

Disconnect hydraulic hoses (A) from spreader and install dust caps.

Connect hoses together.

A-Hydraulic Hoses

OUO6075,0002049 -19-30APR02-2/4

Remove quick-lock pin (A).

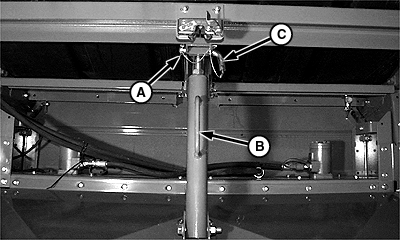

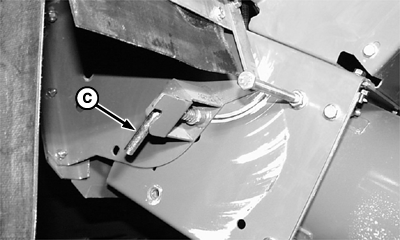

Hold onto tube (B) and remove pin (C). Lower tube forward.

A-Quick-Lock Pin
B-Tube
C-Pin

OUO6075,0002049 -19-30APR02-3/4

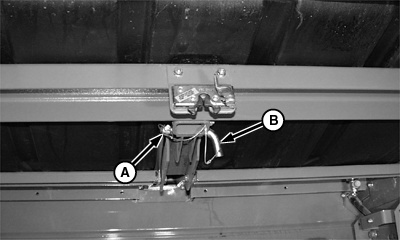

Place pin (B) back into storage position and retain with quick-lock pin (A).

IMPORTANT: Make sure pin (C) is fully engaged in spreader assembly.

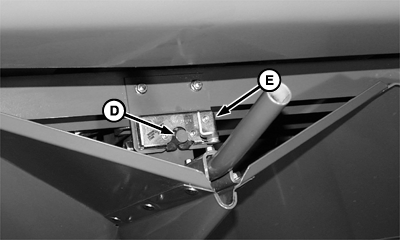

Raise spreader until pin (D) is fully engaged in the latch assembly (E).

A-Quick-Lock
B-Pin
C-Pin
D-Pin
E-Latch Assembly
