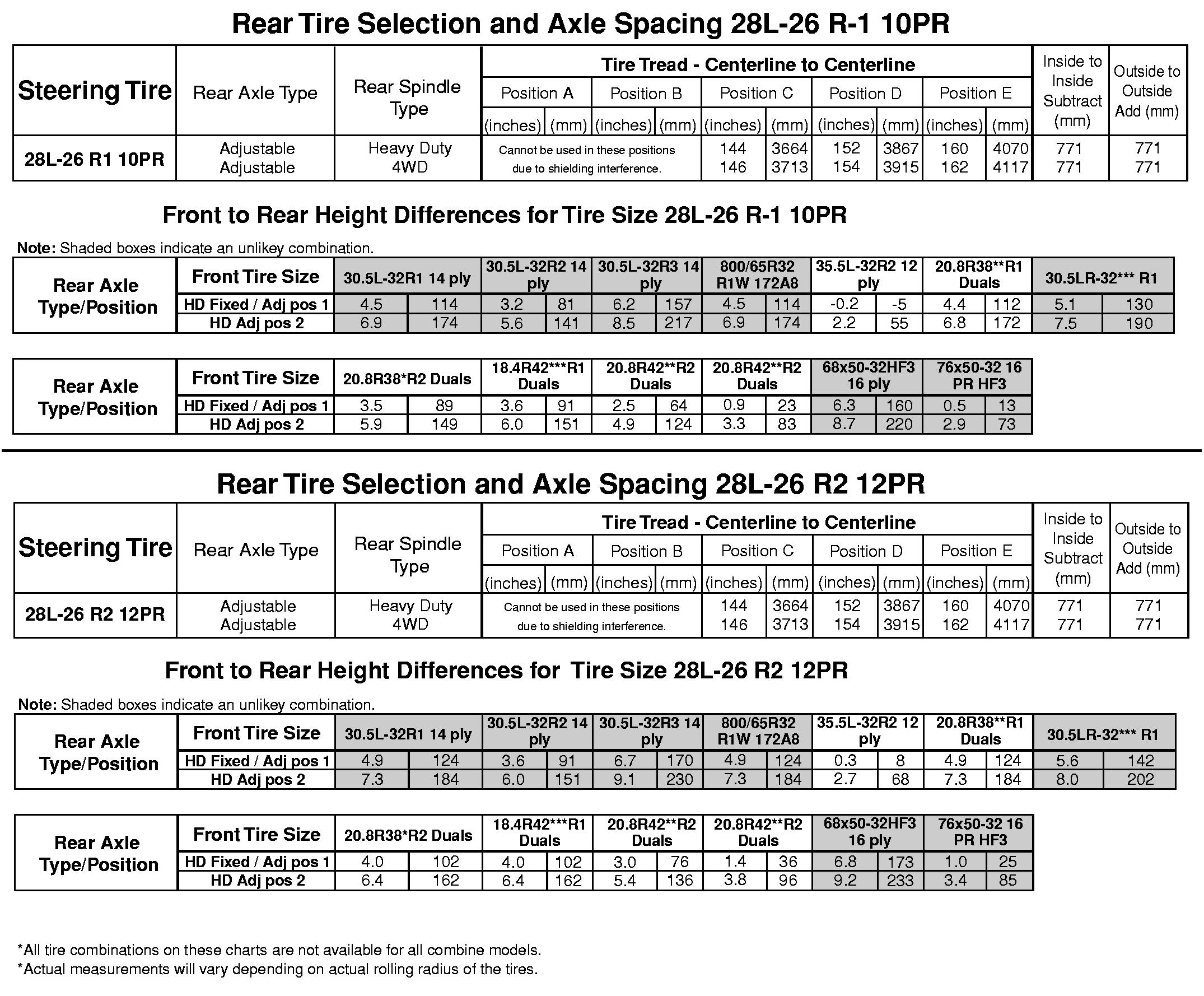

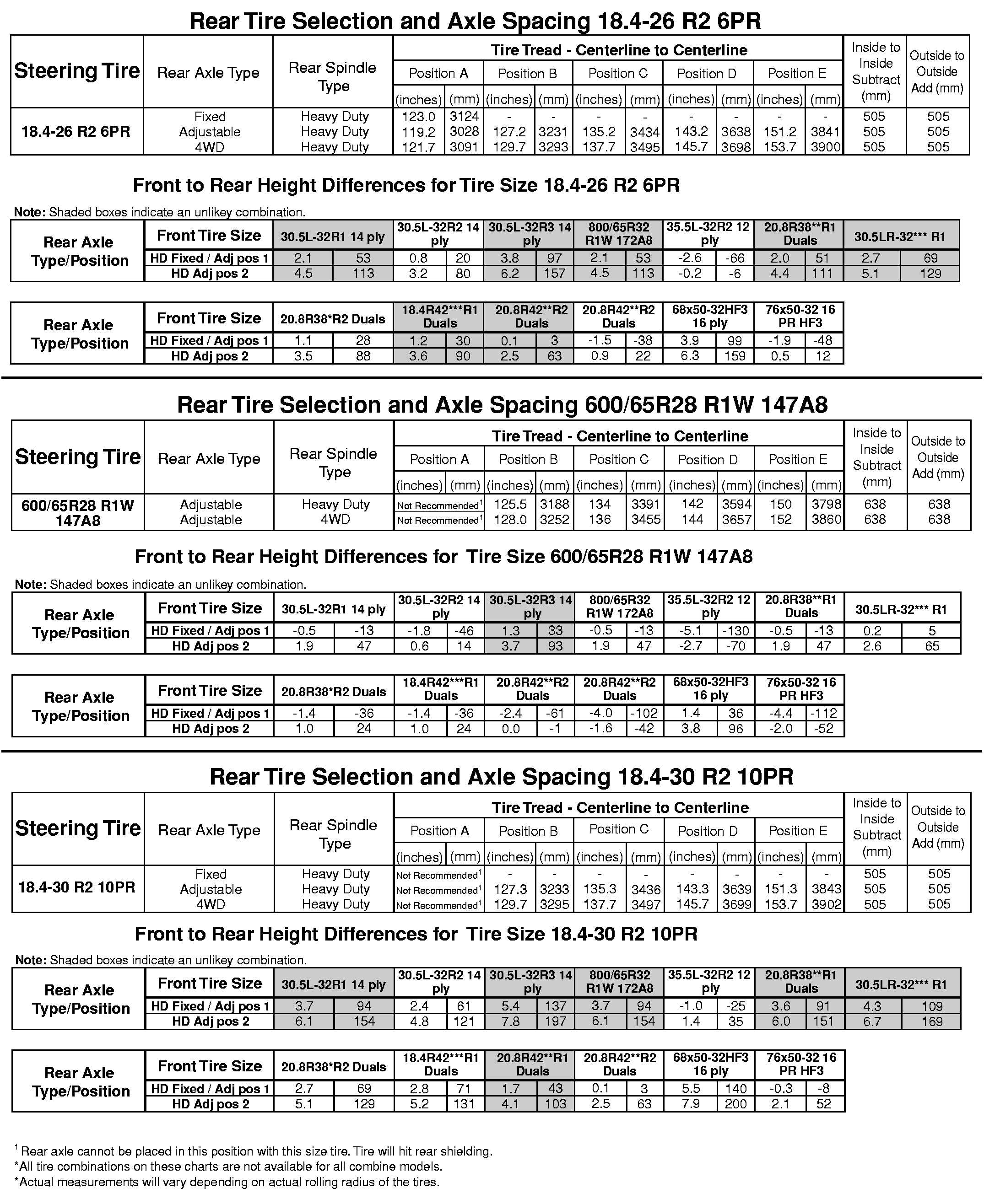

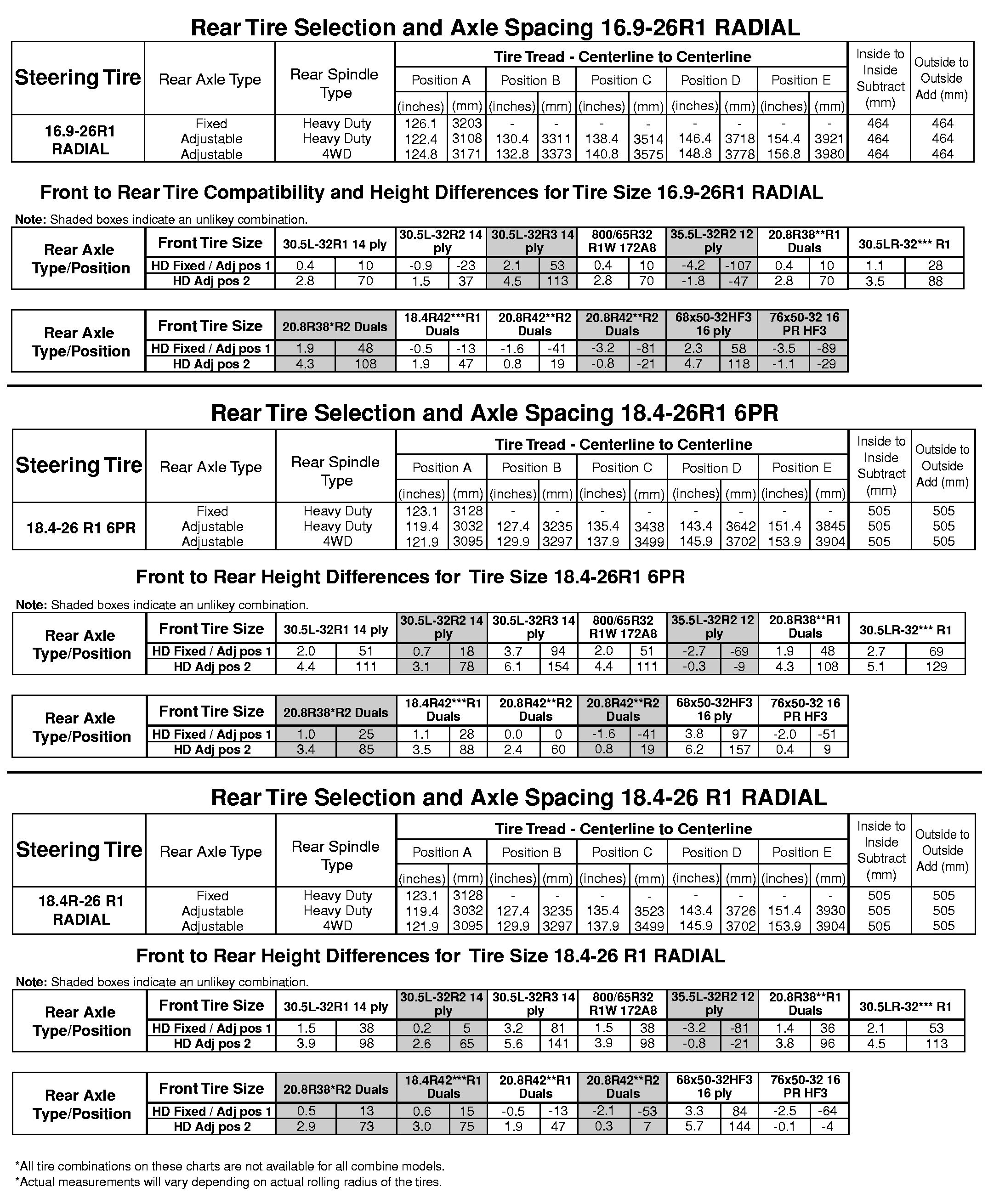

Rear Tire Selection, Tire Spacing, and Front to Rear Tire Compatibility Charts (9650 and 9750 STS)

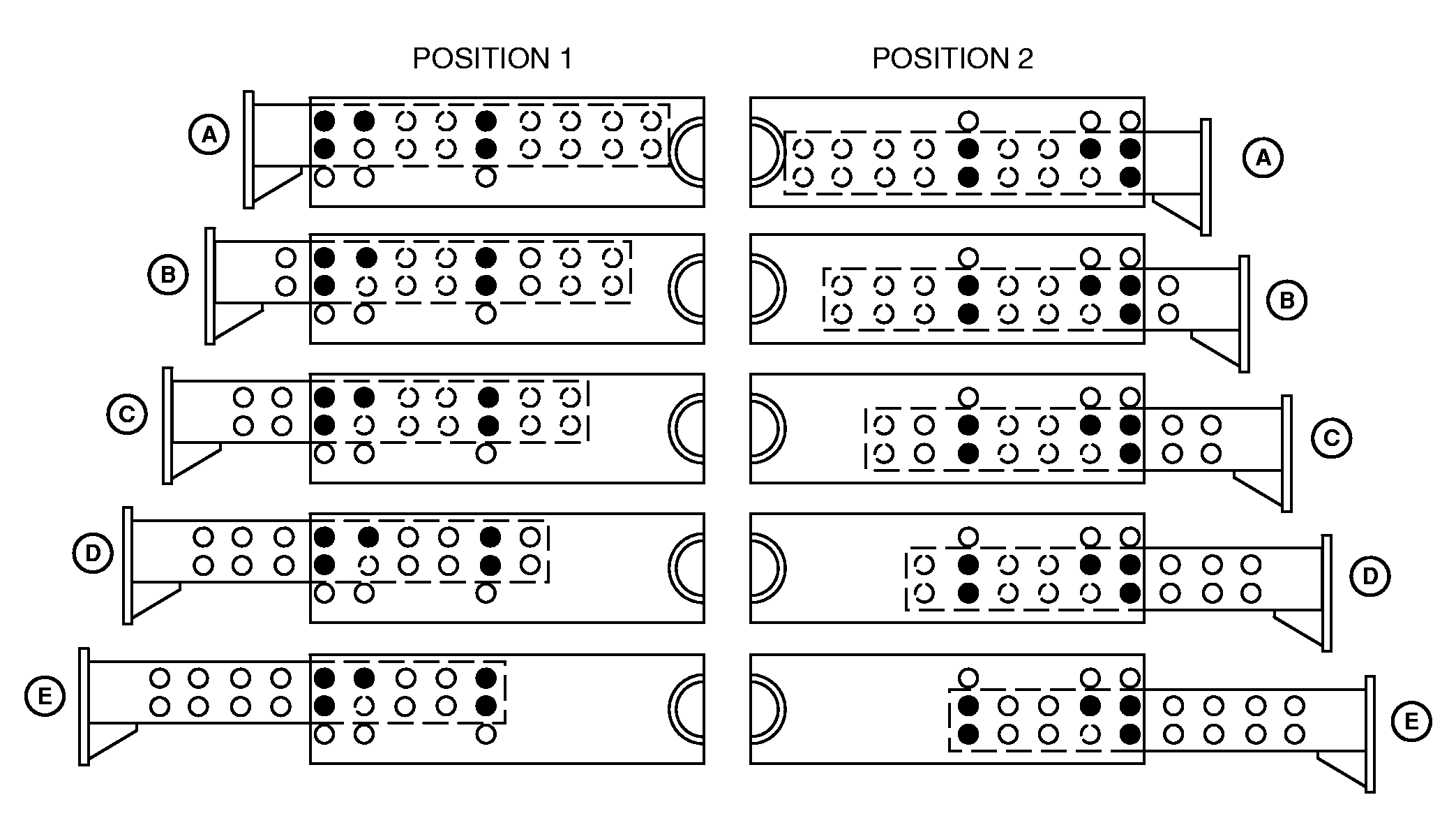

A-Position A B-Position B

C-Position C

D-Position D

E-Position E

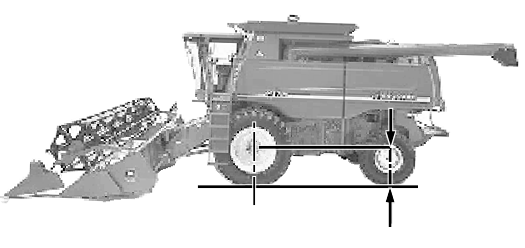

NOTE: Position 1 is for the axle in the standard position. Position 2 is for the axle in the high clearance position. Arrows show the position of the height difference between the front and rear of the

machine. Positive values indicate the rear is higher than the front, and negative values indicate the front is higher than the rear.

OUO6075,000205E -19-07MAY02-1/4
