Stubble Light (Optional) and Access Door Work Light Bulb Replacement

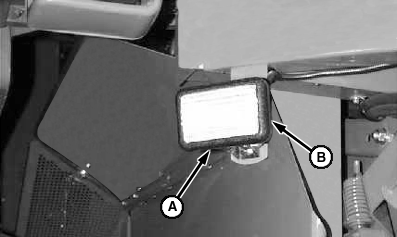

Remove screw (A) and cover (B).

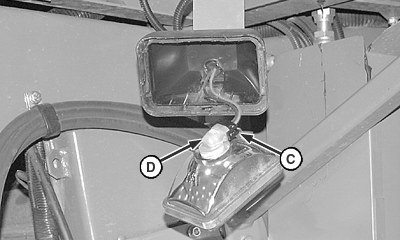

Disconnect connector (C). Clean dirt from light.

Turn retainer (D) counterclockwise and remove.

Install new bulb in reverse order.

A-Screws (4 Used)
B-Cover
C-Connector
D-Retainer

OUO6075,00020D9 -19-15MAY02-1/1
