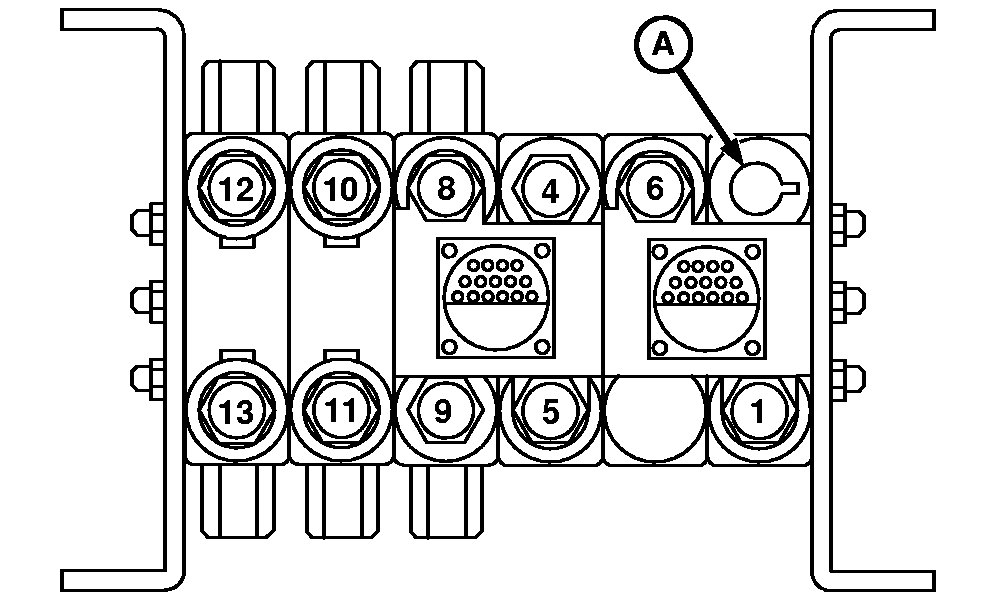

Hydraulic Pressure Diagnostic Ports and Control Scheme
| Hydraulic Pressure Diagnostic Ports and Control Scheme |
| Function |
Coils Magnetized |
| Reel Lift (Header Speed Increase) |
1 & 5 |
| Reel Lower (Header Speed Decrease) |
4 |
| Threshing Speed Increase |
1 & 6 |
| Threshing Speed Decrease |
6 |
| Unloading Auger Extend |
1 & 9 |
| Unloading Auger Retract |
1 & 8 |
| Reel Fore/Aft Extend (Deck Plate Open) |
1 & 11 |
| Reel Fore/Aft Retract (Deck Plate Close) |
1 & 10 |
| CONTOUR MASTER Tilt Right |
1 & 13 |
| CONTOUR MASTER Tilt Left |
1 & 12 |
With engine running apply screw driver to indicated coil to check energized condition (magnetized). See your John Deere dealer if indicated coil is not energized (magnetized).
|
A-Relief Pressure At High Idle 21700 ± 1200 kPa (3150 ± 180 psi)
|
