Adjusting Chopper Blades

causym CAUTION: Shut off engine, set park brake and remove key.

Chopper blades must be free to rotate by their own weight.

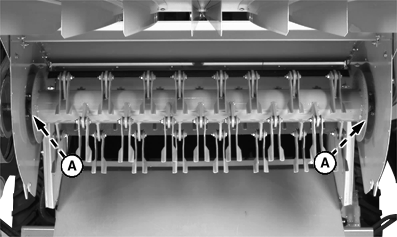

Loosen locking collar (A) (both ends). Position rotor right or left to ensure all rotor blades clear stationary knives. Tighten locking collar (both ends) in direction of rotor rotation.


A-Locking Collar

H54543

OUO6075,0002101 -19-21MAY02-1/1
