Moving Chopper to Windrow Position

NOTE: Chopper tensioner arm must be in the detensioned belt position to raise chopper. If arm is in the tensioned position, safety switch will not allow chopper to be raised.

causym CAUTION: Shut off engine, set park brake and remove key.

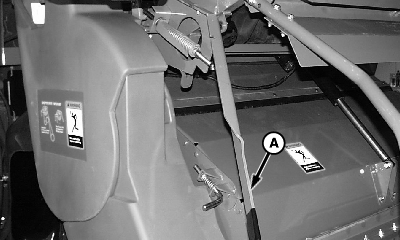

Pull arm (A) down, outward and up to release chopper belt tension.


A-Arm
B-Rubber Strap

H72560
H72540

OUO6075,0002171 -19-13JUN02-1/3

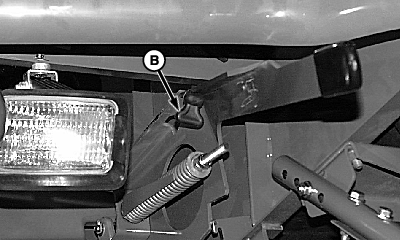

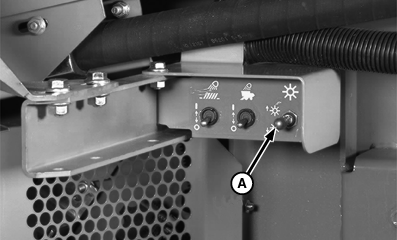

Install rubber strap (B) to hold arm in the detensioned belt position.Switch (A), located on the left-hand side sheet above rear axle, raises and lowers the chopper. Push switch up to raise chopper.

Raise chopper assembly until lock-out pins snap into place.


A-Switch

H62196

OUO6075,0002171 -19-13JUN02-2/3

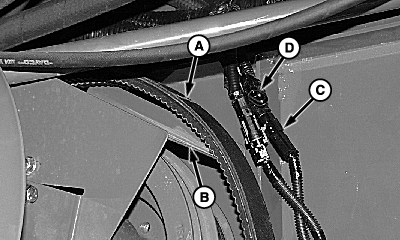

Place drive belt (A) on top of guard (B), so belt does not turn while chopper is in the windrow position.

Disconnect low shaft speed connector (C) and connect to ground (D).


A-Drive Belt
B-Guard
C-Low Shaft Speed Connector
D-Ground

H71799
