Lowering Chopper

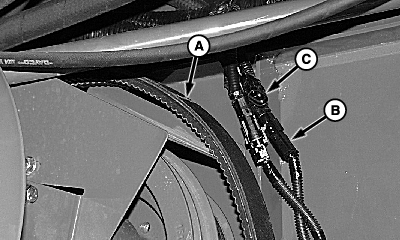

1. Remove drive belt (A) from storage position.

2. Disconnect low shaft speed connector (B) from ground (C) and connect to wiring harness connector.

A-Drive Belt
B-Low Shaft Speed Connector
C-Ground

OUO6075,0002172 -19-13JUN02-1/4

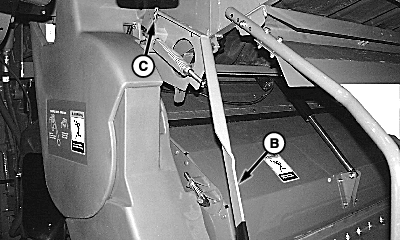

3. Place lower deflector door (A) in the middle position.

4. Release lock-out pins (B) on both sides. Pull pins rearward and rotate up until handle rest on lockout bracket (C).

A-Lower Deflector Door
B-Lock-Out Pins
C-Lockout Bracket

OUO6075,0002172 -19-13JUN02-2/4

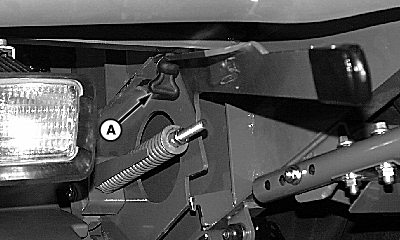

5. Push switch (A) down to lower chopper.

A-Switch

OUO6075,0002172 -19-13JUN02-3/4

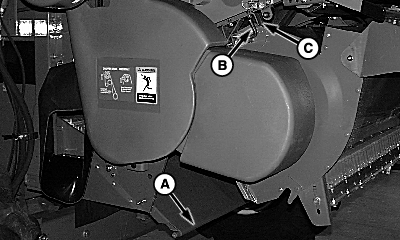

6. Place drive belt on desired drive speed sheaves.

7. Remove rubber strap (A) from slot on arm.

8. Pull arm (B) out and down to put tension on drive belt. Secure arm in slot (C).

A-Rubber Strap
B-Arm
C-Slot

OUO6075,0002172 -19-13JUN02-4/4
