Replace Variable Speed Feeder House Belt

CAUTION: Lower variable sheave is under spring tension; if belt is removed, it will snap back to a closed position.

1. Run feeder house to close lower variable sheave.

2. Shut off engine and remove key.

3. Remove both shields on left-hand side.

OUO6075,0002183 -19-14JUN02-1/2

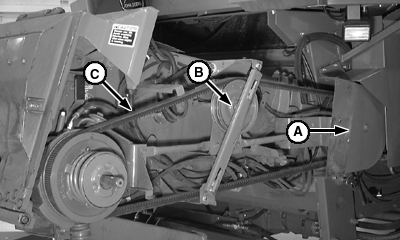

4. Remove drive sheave cover (A).

5. Loosen idler nut (B) to relieve belt tension.

6. Remove belt (C) from sheaves.

7. Install new belt and adjust tension. (See ADJUSTING VARIABLE SPEED FEEDER HOUSE BELT).

A-Shield
B-Nut
C-Belt

OUO6075,0002183 -19-14JUN02-2/2
