Adjusting Header Drop Rate

NOTE: Lower header to ground to relieve circuit pressure before adjusting header drop rate.

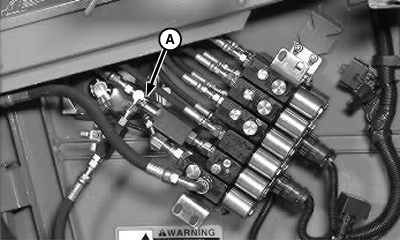

WITHOUT Active Header Control: Loosen nut (A) and turn screw for faster drop rate, turn screw in for slower drop rate.

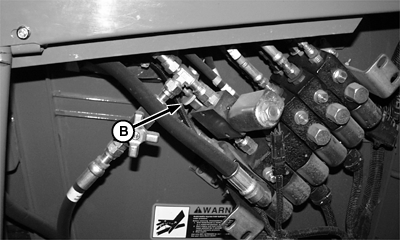

WITH Active Header Control: Adjust drop rate as described, open accumulator two turns and adjust with knob (B) as needed.

Tighten nut after adjusting.

A-Nut
B-Knob
