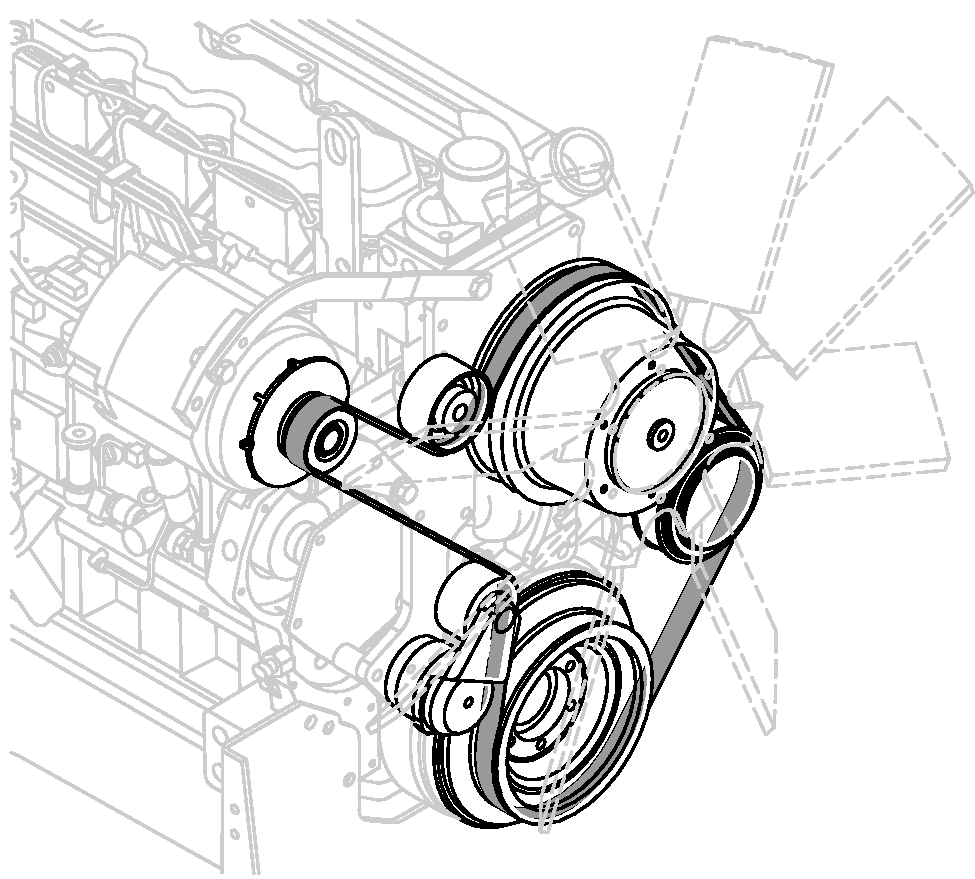

Replace Engine Accessory/Fan Drive Belt

CAUTION: Shut off engine, remove key and set parking brake.

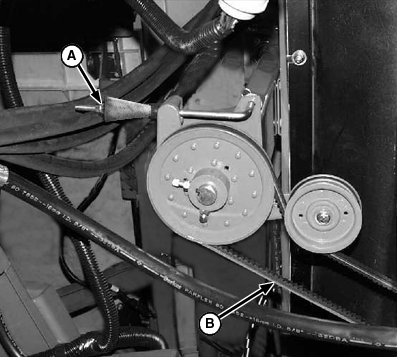

1. Loosen nut (A) and remove rotary screen drive belt (B).

A-Nut
B-Rotary Screen Drive Belt

OUO6075,00021B0 -19-19JUN02-1/3

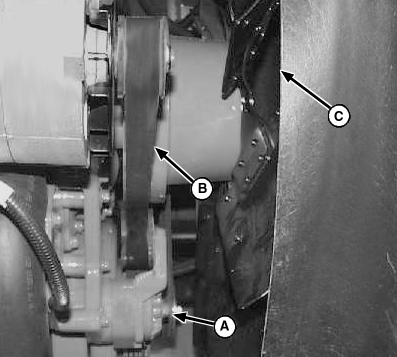

2. Loosen idler using a breaker bar and socket on bolt (A) to relieve belt tension.

3. Remove belt (B) from engine. Work belt over fan (C) and remove belt.

A-Bolt
B-Bolt
C-Fan

OUO6075,00021B0 -19-19JUN02-2/3

4. Install new belt (B).

5. Tighten nut (A) until gauge aligns with end of spring.

A-Nut
B-Belt
