CAUTION: Lights must be turned on when transporting on public roads. Swing ladder fully forward so warning light on side of ladder is toward oncoming motorists.

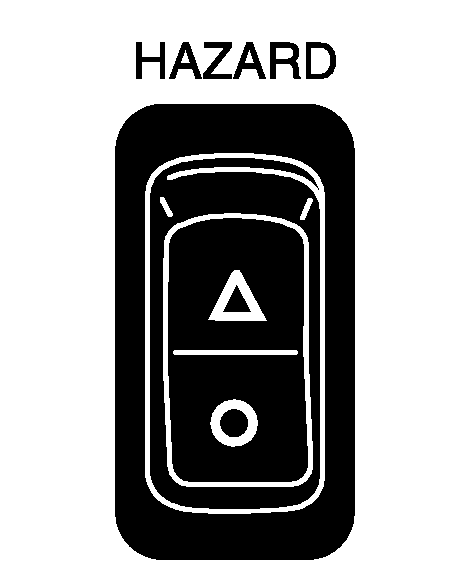

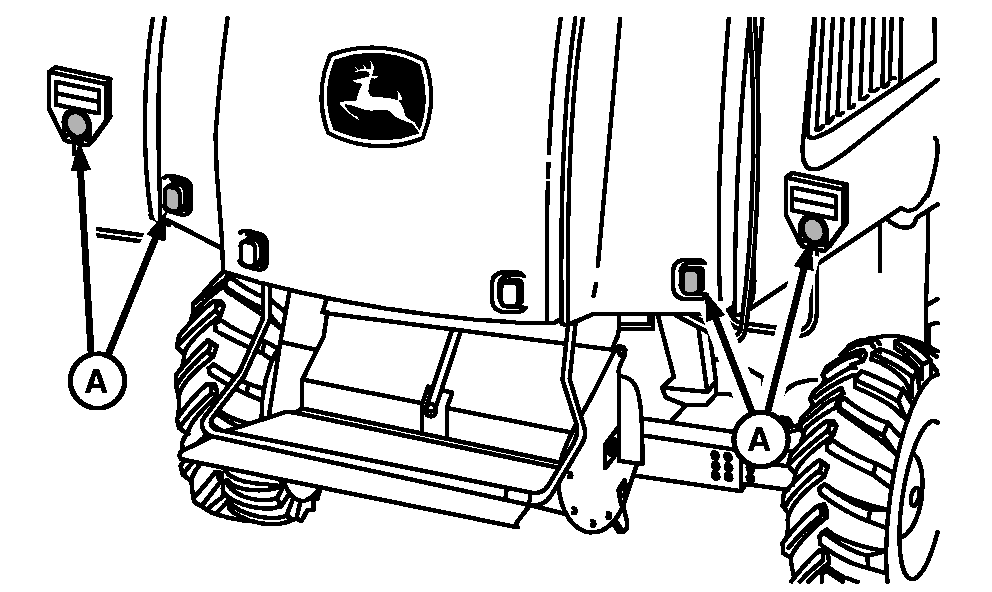

Warning (flashing) lights (A), four road lights (B) (if engine is running) and turn signals. Two position switch to turn on and off.

When transporting on a road, flashing lights give warning to other drivers. These lights are located on both sides at the front and rear of the combine.

OUO6075,00021C2 -19-24JUN02-1/1
