DIAL-A-SPEED System

Operator enables DIAL-A-SPEED system by using button (A) on the cornerpost display. Double arrow under the DIAL-A-SPEED icon (B) will appear on display.

DIAL-A-SPEED system can be activated only when:

• Engine is running
• A properly equipped header is connected to the combine
• Header is engaged
• Reel speed is not set to zero
• Header has been calibrated
• Ground speed greater than 1 km/h (5 mph)

Operator activates the system by pressing one of the Header Activation Buttons on Multi-function handle. Arrowheads on each side of icon indicates the system is activated.

If all above conditions have been met, the system will control the reel or belt pickup speed to the ratio selected. Rotating encoder clockwise will increase ratio and counterclockwise will decrease ratio. Larger the ratio number (C) selected, the faster reel or belt pickup will operate with respect to combine ground speed. Selected ratio will be displayed numerically on cornerpost display.

Operator disables the system by pressing button (A) on cornerpost display.

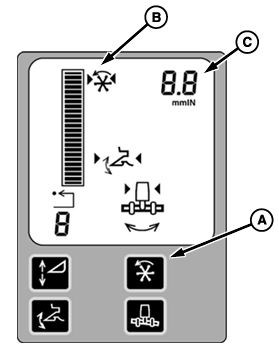

A-DIAL-A-SPEED Button
B-DIAL-A-SPEED Icon
C-Number

OUO6075,00021E8 -19-27JUN02-1/1
