Accessing Diagnostic Trouble Codes and Addresses

Prepare Combine:

  • Turn the key switch to the "RUN" position.

OUO6075,00021F4 -19-28JUN02-1/10

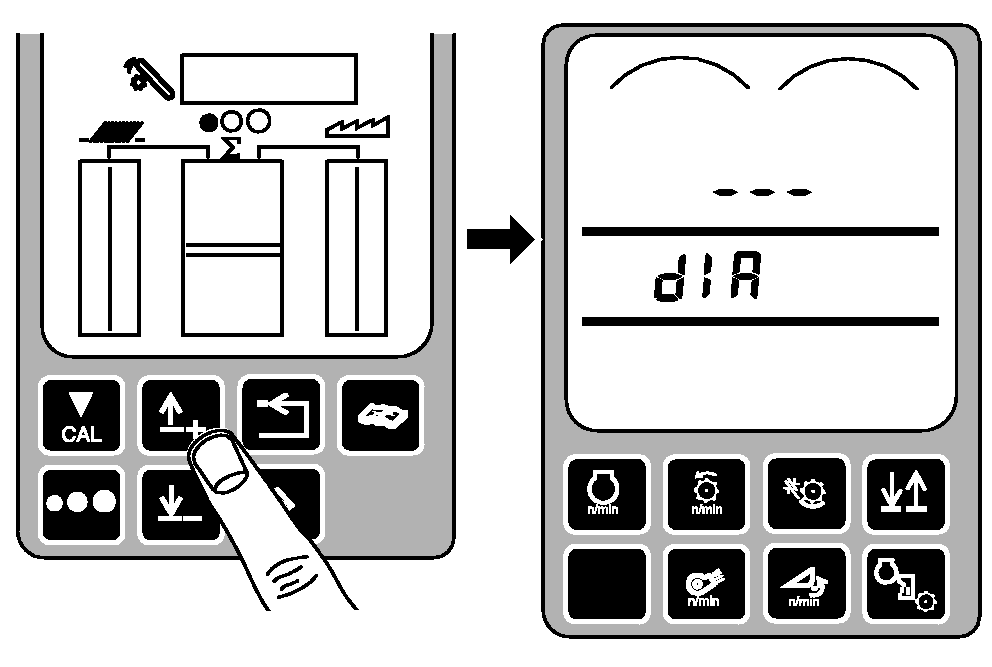

Press diagnostic switch. dIA will appear on the triple display tachometer.

H72742

OUO6075,00021F4 -19-28JUN02-2/10

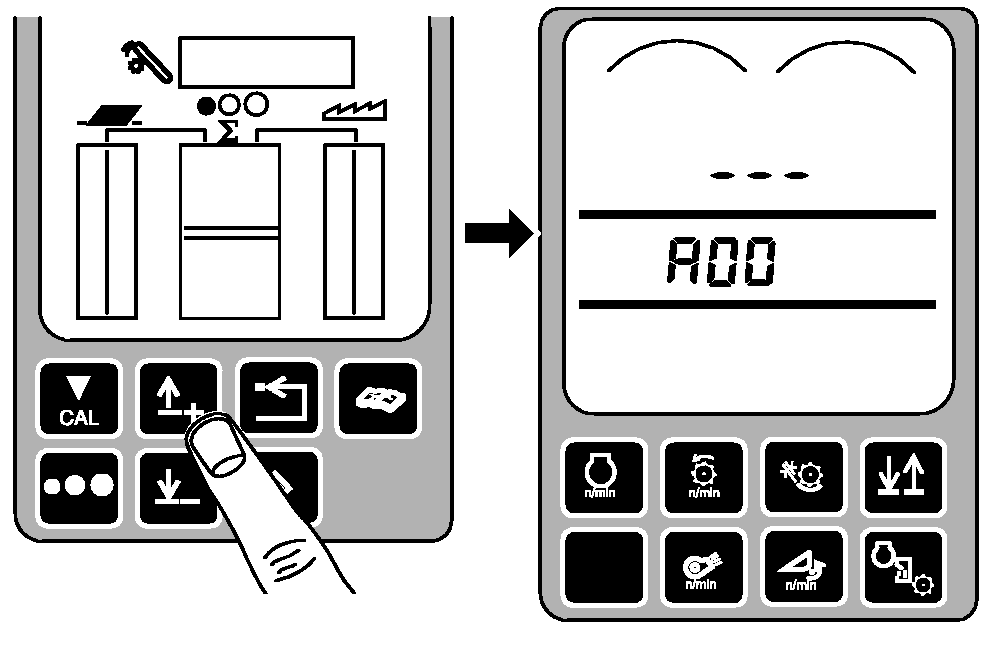

Press the up or down arrow keys to obtain the desired address. For example A00 appears on triple display tachometer.

H72743

OUO6075,00021F4 -19-28JUN02-3/10

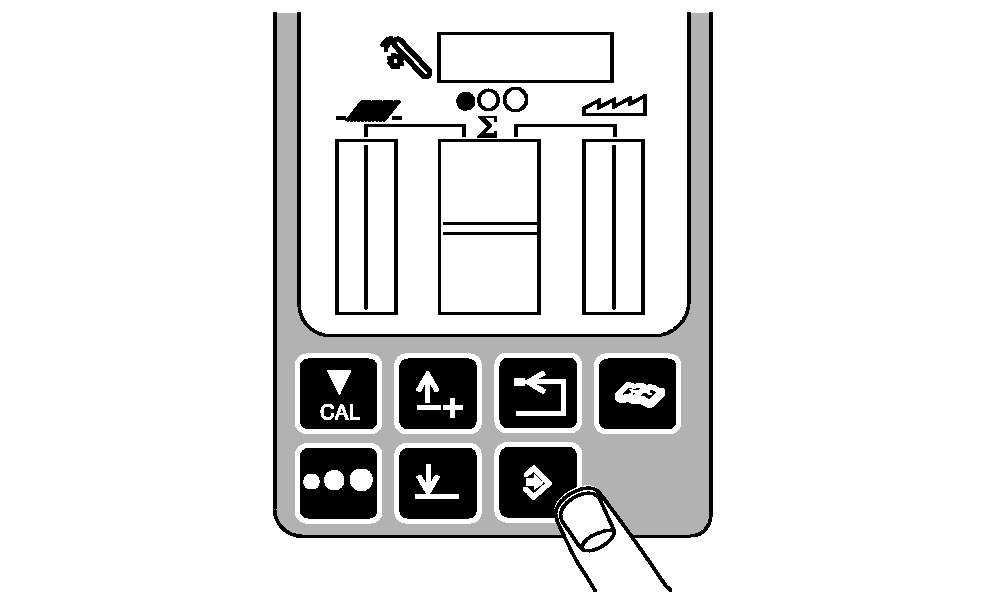

Press enter button.

H72744

OUO6075,00021F4 -19-28JUN02-4/10

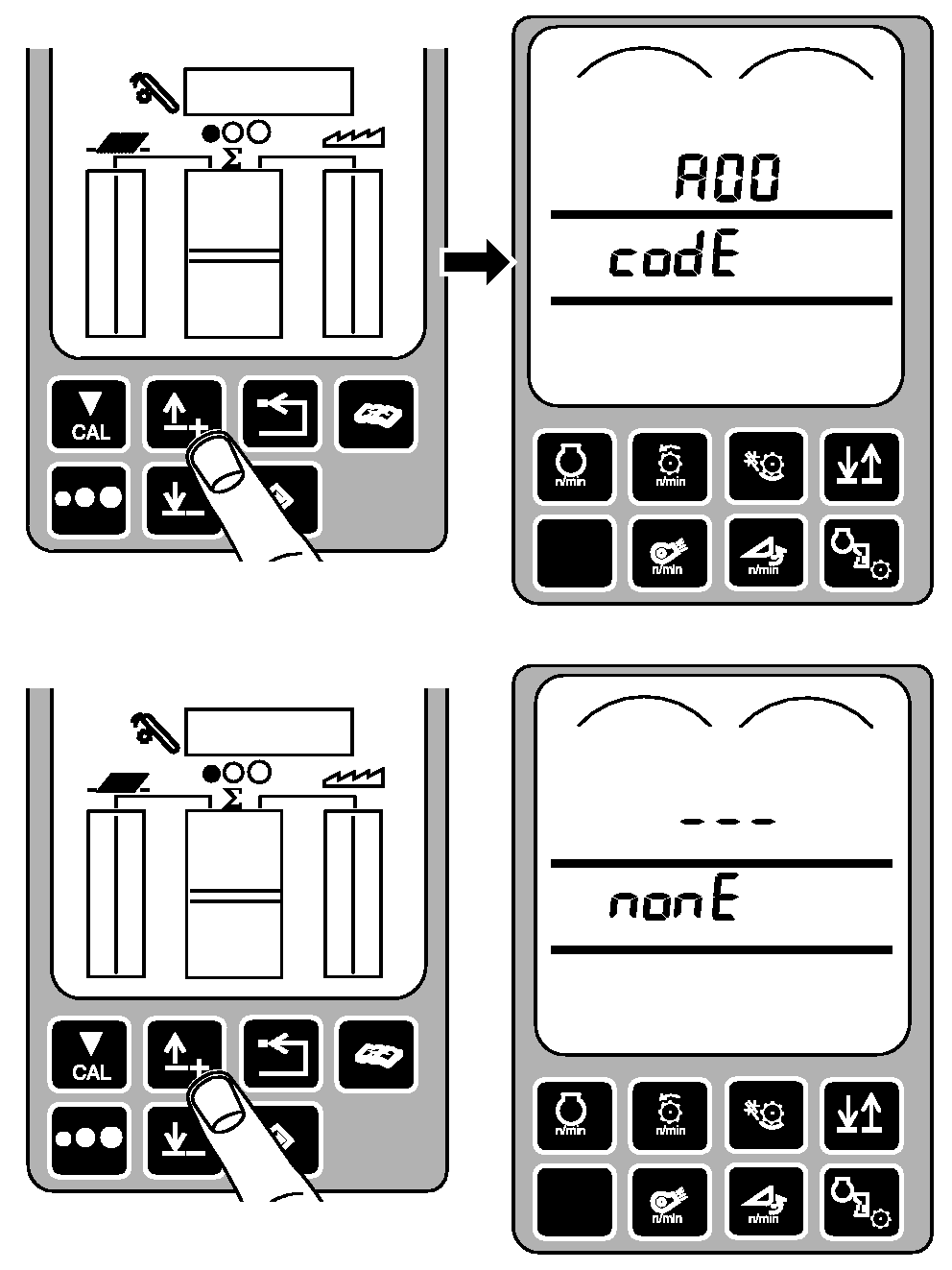

Press the up or down arrow keys once. If diagnostic trouble codes are available, A00 and codE will appear on triple display tachometer.

If no diagnostic trouble codes are available, A00 and nonE will appear on triple display tachometer.

H72745

OUO6075,00021F4 -19-28JUN02-5/10

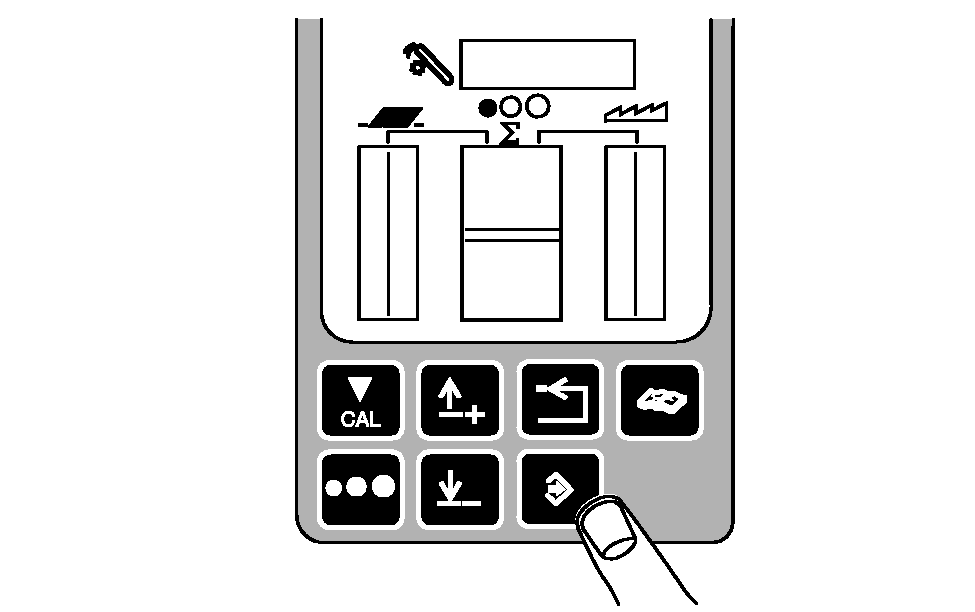

To read and record diagnostic trouble codes press enter button.

H72746

OUO6075,00021F4 -19-28JUN02-6/10

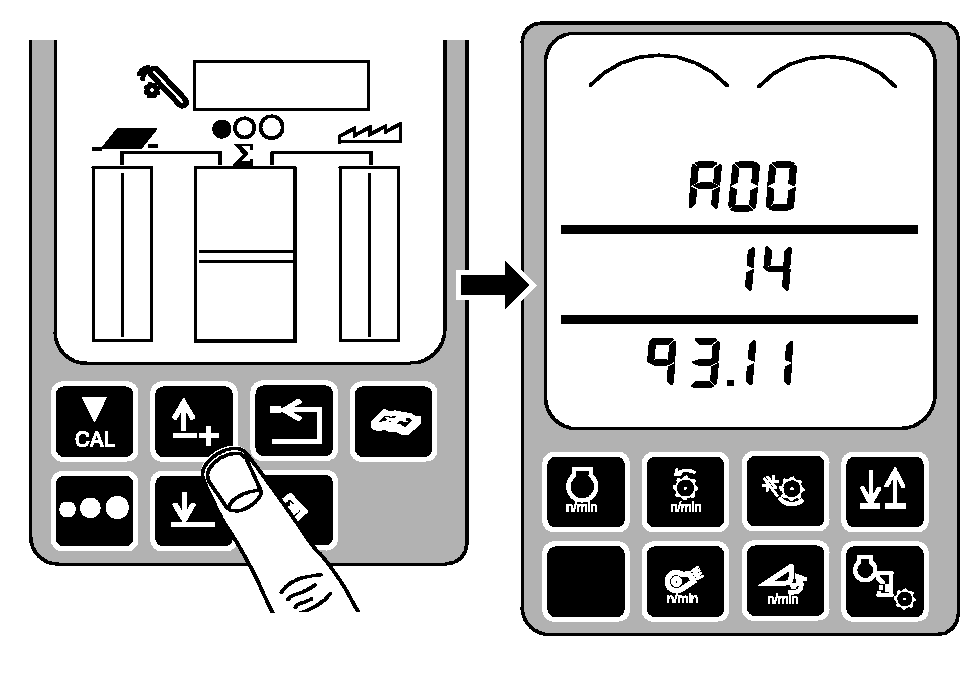

Press the up or down arrow keys to scroll through the diagnostic codes.

  • Record each control name
  • Record each suspected parameter number
  • Record each failure mode identifier
H72747

OUO6075,00021F4 -19-28JUN02-7/10

After all codes have been displayed, there is an option to clear these codes.

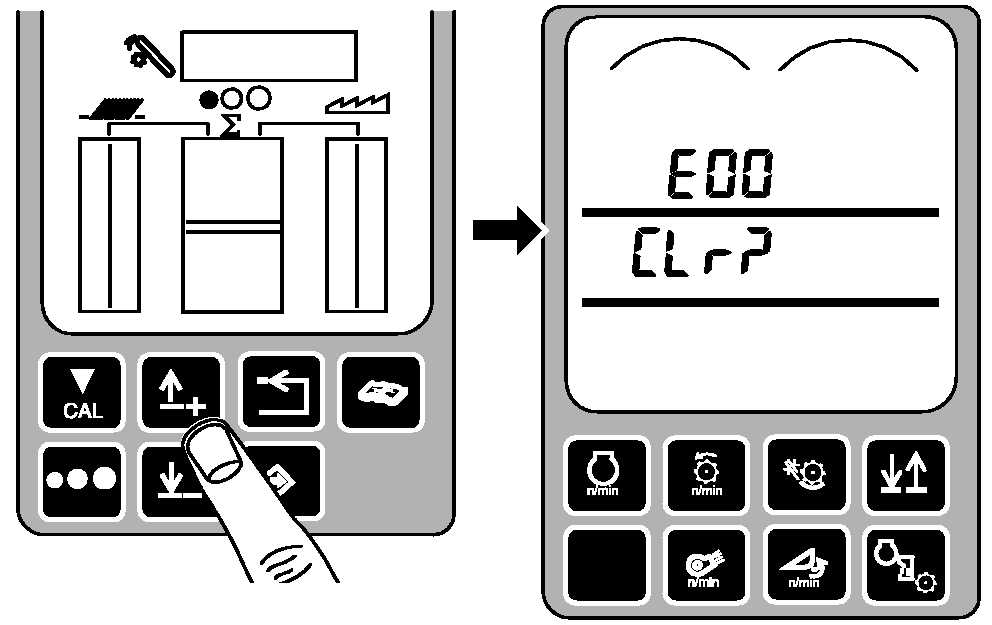

Scroll to end of code list until CLr? is displayed.

H72748

OUO6075,00021F4 -19-28JUN02-8/10

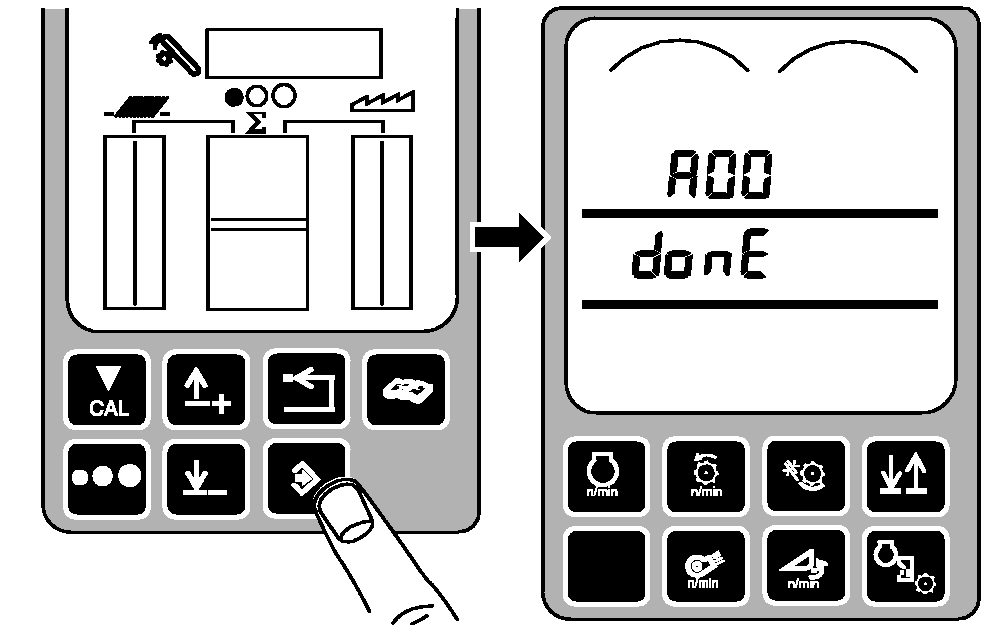

Press the enter button to clear codes. A00 and donE will appear on triple display tachometer.

H72749

OUO6075,00021F4 -19-28JUN02-9/10

NOTE: Priority 1 codes cannot be cleared until the problem is solved.

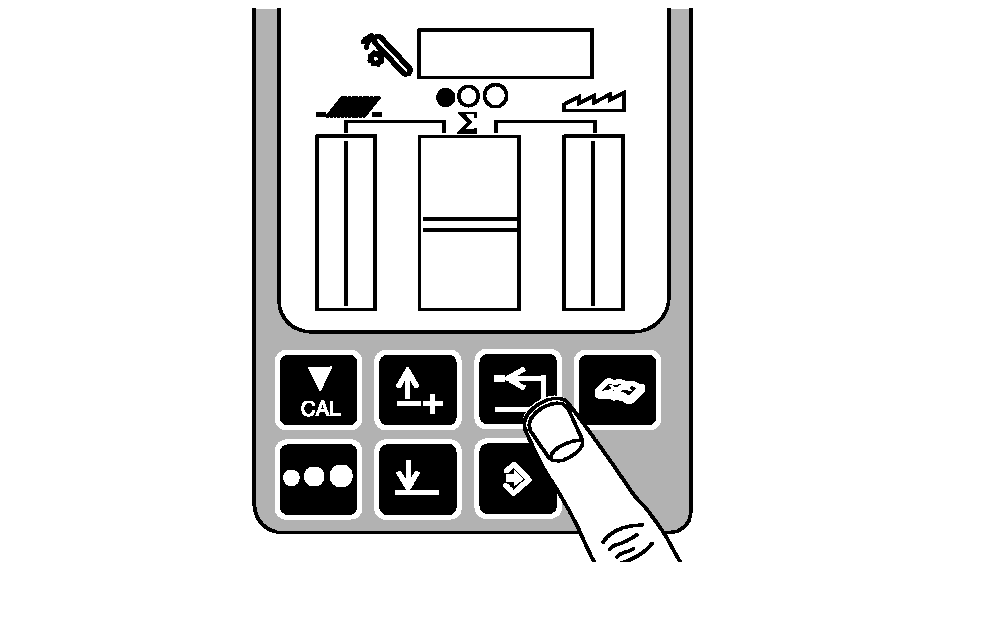

Press back arrow switch three times to return to normal operation.

H72750
