Mobile Processor and PC Card

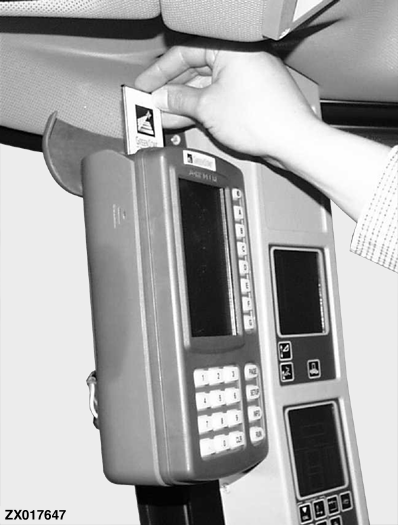

The mobile processor is assembled to the back of the GREENSTAR Display which is located in the cab, on the right front corner post. The mapping processor is the file cabinet that stores yield data and writes harvest data to the PC Card for use with desktop software.

IMPORTANT: Always turn ignition switch OFF prior to removing the PC Card from its slot. Failure to do so could lead to PC Card damage or data file corruption.

The PC Card is located in the mapping processor while harvesting. It provides a storage medium for all yield data acquired from the combine yield mapping system.

A 16 MB PC Card will store approximately 400 harvesting hours of data, and can be easily transported to the home office to download new data.
