Adjusting Reel Speed Ratio Sensor

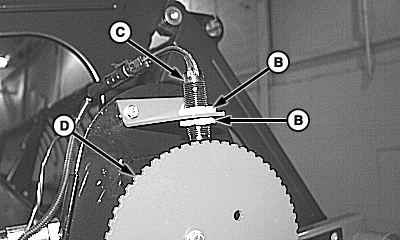

Remove screws (A) and shield.

Loosen two lock nuts (B) and adjust sensor (C) until it touches tone wheel (D), then back it off 1/2 turn.

Rotate the reel a couple of turns by hand to be sure there is no interference. Tighten lock nuts and replace shield.

A-Screws (3 used)
B-Lock Nuts (2 used)
C-Sensor
D-Tone Wheel
