Replacing Auger Fingers and Retainers

causym CAUTION: Avoid serious injury from cutterbar movement when auger is turned. Remove knife drive belt (see Remove and Install Knife Drive Belt section).

1. Open left-hand shield.

2. Pull up on tensioner arm sheave handle (A) to relieve belt tension.

3. Remove drive belt (B).

H75362

Rigid platform shown


A-Tensioner Arm Sheave Handle
B-Cutterbar Drive Belt

OUO6035,000149A -19-08AUG01-1/5

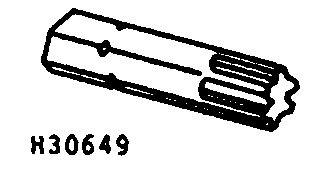

NOTE: Order JDC-3 from your John Deere dealer. Use driver with 1/4 to 3/8-in. adapter.

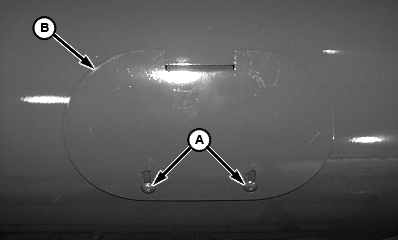

4. TORX ® Use JDC-3 or TORX T-40 driver to loosen TORX screws (A) and remove access hole covers (B).


A-TORX® Screw
B-Access Hole Cover

H30649
H66667

TORX is a trademark of Camcar/Textron

OUO6035,000149A -19-08AUG01-2/5

NOTE: Steel Auger Fingers Only. If replacing composite auger fingers, skip to step 7.

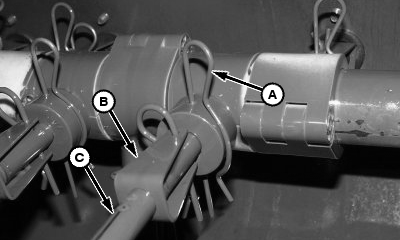

5. Remove pin (A) and remove broken parts.

IMPORTANT: Replace auger finger retainers (B) when replacing steel auger fingers (C).

Make sure fingers are securely fastened by pins (A) before replacing hand hole cover.

6. Install new parts and retain with pin (A).

H66674


A-Pin
B-Retainer
C-Finger

OUO6035,000149A -19-08AUG01-3/5

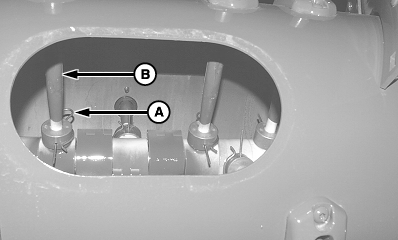

NOTE: Composite Finger Only:

7. Remove spring clip (A) and finger (B).

8. Install new finger and retain with spring clip.


A-Spring Clip
B-Composite Finger

H75519

OUO6035,000149A -19-08AUG01-4/5

9. Install access hole covers (B) and retain with TORX screws (A).

10. Reinstall drive belt and close left-hand end shield.


A-TORX Screw
B-Access Hole Cover

H66667

OUO6035,000149A -19-08AUG01-5/5
