Attaching Platform to Combine

IMPORTANT: Latch pins are not to be actuated with header on the ground. If multi-coupler must be actuated with header on ground, unhook cable from handle.

IMPORTANT: Attaching platform to a 9560 STS, flight extension are required (see your John Deere dealer).

Sound horn, start engine and lower feeder house.

Drive combine slowly forward until feeder house is centered in attachment frame opening.

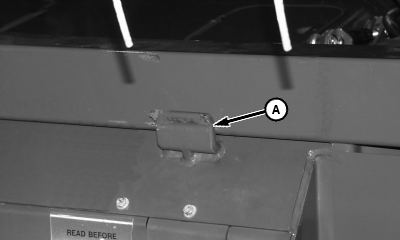

Raise platform completely, making sure two hooks (A) on feeder house catch front side of main frame beam of platform.

Set parking brake, shut off engine, remove key and lower safety stop.

A-Hook (2 on feeder house)

OUO6091,00015EB -19-14FEB03-1/7

NOTE: If combine is not equipped with latching cable (C), latching pins will have to be manually latched (see, Retrofit 600 Series Platform to Pre 60 Series Combines section for manual latching procedures).

Remove cover (A) and clean multi-coupler face (B).

A-Cover
B-Multi-Coupler Face
C-Latching Cable

OUO6091,00015EB -19-14FEB03-2/7

Open handle (A) and remove multi-coupler (B) from storage bracket (C).

A-Handle
B-Multi-Coupler
C-Storage Bracket

OUO6091,00015EB -19-14FEB03-3/7

NOTE: To prevent damage to the latching cable, a shear screw is attached to the handle. Attempts to actuate the latching pins with the header on the ground will shear the screw on the handle. (See Extra Shear Screw Location later in this section.)

Combine without cable latching option, skip to next step.

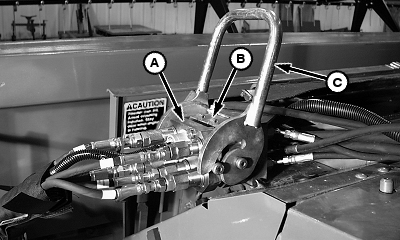

Install multi-coupler (A) onto receptacle (B) on feeder house and close handle (C).

A-Multi-Coupler
B-Receptacle
C-Handle

OUO6091,00015EB -19-14FEB03-4/7

NOTE: With header attached, latch pins should move freely through receiving holes in header. If latch pins do not extend, make sure that the latching plates on the header are properly adjusted.

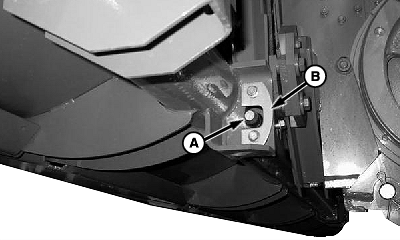

Latch pins (A) will extend through latch plates (B) on feeder house when multi-coupler is latched.

A-Pin
B-Latch Plates

OUO6091,00015EB -19-14FEB03-5/7

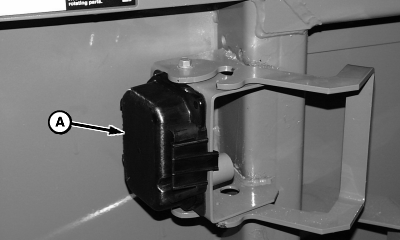

Install multi-coupler cover (A) on platform storage position.

A-Cover

OUO6091,00015EB -19-14FEB03-6/7

IMPORTANT: Before engaging platform, see Checking Platform Speeds in Operating section of this manual for proper front shaft (platform back shaft) speed.

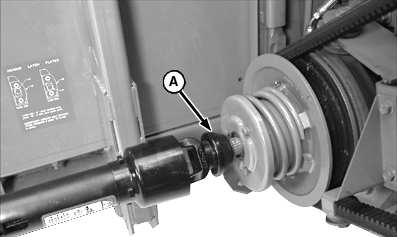

Remove telescopic shaft (A) from storage position and install onto feeder house backshaft, making sure quick attach collar locks fully.

A-Telescopic Shaft

OUO6091,00015EB -19-14FEB03-7/7
