Transporting

CAUTION: Follow local regulations regarding width, lighting and marking.

IMPORTANT: Whenever possible avoid transporting on public roadways with the header attached.

If the combine must be transported with the header attached, make sure that the flashing warning lights on the header are operating and the reflective material is clean and visible.

The use of a spotter or pilot vehicle is recommended on busy, narrow or hilly roads and when crossing bridges.

Drive at a speed that is safe for conditions.

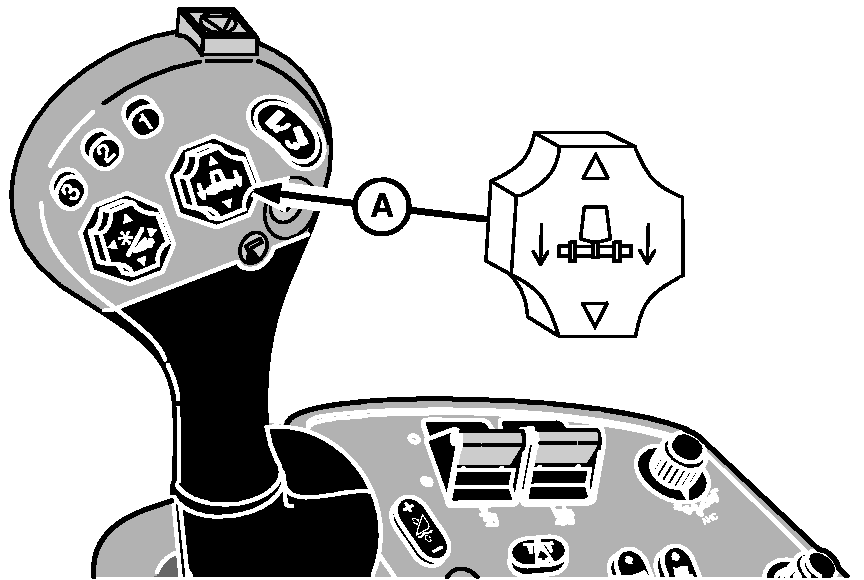

Raise platform completly with header switch (A).

A-Switch

OUO6091,00015F6 -19-05MAR03-1/3

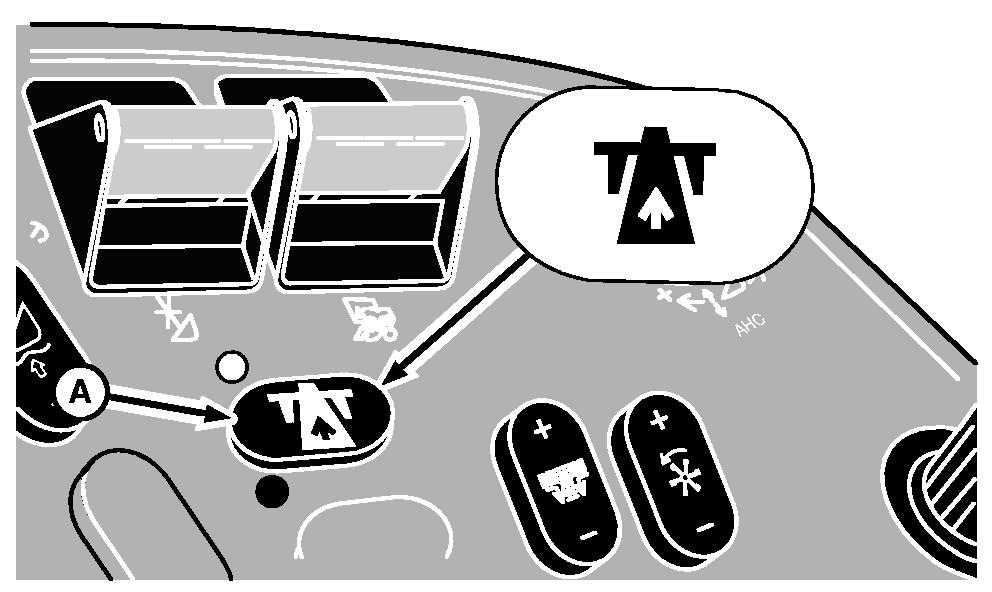

Engage road transport disconnect switch (A).

OUO6091,00015F6 -19-05MAR03-2/3

CAUTION: When transporting on a road or highway, flashing warning lights and taillights on both sides provide a warning to operators of vehicles approaching from the front and rear. These warning lights must be turned "ON" when driving the combine on a public road. Swing the cab ladder fully forward as possible in order to orient warning light towards oncoming motorists. Do not operate flashing warning lights if prohibited by law.

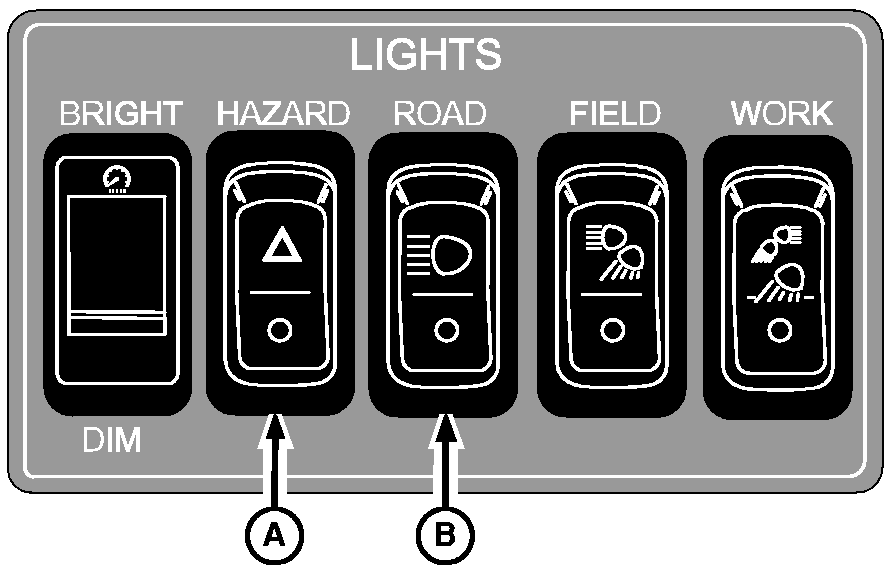

Turn hazard light switch (A) "ON" for both daytime and nighttime road travel. Turn "ON" road lights (B) for nighttime travel. Warning lights automatically operate when the hazard lights are "ON".

NOTE: Turn signals are not self cancelling.

Use turn signals as needed.

A-Hazard Light Switch
B-Road Light Switch

OUO6091,00015F6 -19-05MAR03-3/3
