Reel Relief (Attachment)

Reel relief valve (A) allows the operator to adjust reel stall force to meet field conditions. Once valve (B) is set for field conditions tighten locking collar (C) to keep valve set.

Adjust reel drive relief valve: Normal reel speed is with valve (B) in the open position (full out position). Adjustment range: 5 Turns

Conditions to Settings
Low, Heavy, Wet Crops Turn valve towards the out position (open).
Less stall force needed. Slow or stop reel , thereby protecting it from damage caused by ground contact (i.e. rocks, slugs).
For extreme dry conditions, protect crop from shatter loss.		 Turn valve towards the in position (Closed).

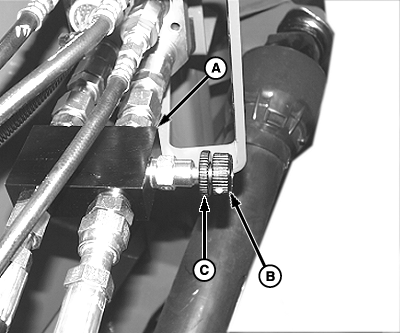

H75492


A-Reel Relief Valve
B-Valve
C-Locking Collar

OUO6091,00015F8 -19-05MAR03-1/1
