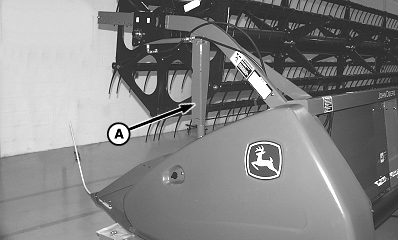

CAUTION: Lower both safety stops (A) when working under or on the reel.
Sound horn, start combine engine, raise reel and platform completely. Stop combine engine, set parking brake and remove key.

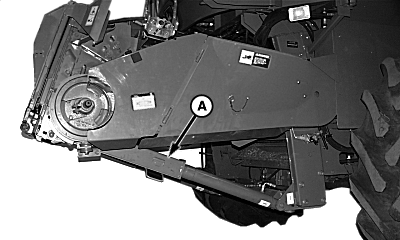

Set two safety stops on reel and one on the feeder house.
A-Safety Stop
OUO6091,00015F9 -19-06MAR03-1/1
CAUTION:
Lower both safety stops (A) when working under or on the reel.
